Exadata and IORM by Examples



The Exadata Machine is frequently used to consolidate the database infrastructure, and such kind of environments must guarantee performance stability and governance. On Exadata the IO Resource Manager extends the capabilities available also on the other platforms to allocate, cap and prioritize the resources among databases and categories.

Available since the the first version of the Storage Cell software, IORM has been recently enhanced to cope with the new Multitenant and Cloud requirements.  The IORM Plan can optimize the workload with one of the following objectives: basic, auto, low_latency,  balanced or high_throughput.



I/O Resource Manager Overview

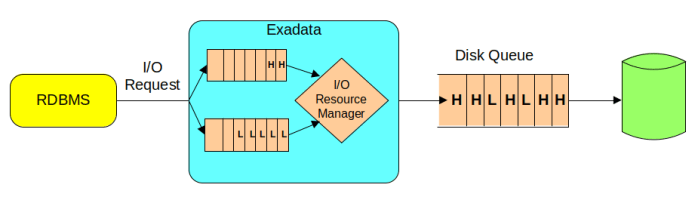

IORM allows to execute I/O Requests based on their priority, this is achieved handling separated queues which manage High and Low priority requests as shown on the image below.



IORM_Overview



Default IORM status

Automatically enabled it cannot be completely disabled. The default mode, protects critical operations like  flash cache and flash log  I/Os

CellCLI> list iormplan detail
name: tvdceladm06_IORMPLAN
catPlan:
dbPlan:
objective: basic
status: active

CellCLI>



Per Database IORM definition

This configuration is suitable on environments with a small number of databases, where the I/O resources are individually defined for each database.

alter iormplan objective=auto

ALTER IORMPLAN -
dbplan=((name=ERP01, level=1, allocation=75, limit=95, role=primary), -
(name=ERP01, level=1, allocation=5, limit=25, role=standby),          -
(name=TREP, level=1, allocation=2, limit=5, flashCacheSize=1G),       -
(name=EPA01, level=2, allocation=40, limit=80),                       -
(name=DHJ01, level=3, allocation=50, flashCacheSize=20G),             -
(name=other, level=3, allocation=30))

The above plan regulates: the database level, allocation (%), soft and hard limits (%), the amount of flash cache and the role (primary or standby).



DBaaS and IORM

This configuration is suitable for Cloud like environments, where a large number of databases are consolidated on the same infrastructure. The database services are standardized in few categories (for example Gold, Silver and Bronze) and the I/O resource plan regulates the same service categories.

CellCLI> ALTER IORMPLAN
dbplan=((name=gold, share=20,limit=100, type=profile),
        (name=silver, share=10, limit=60, type=profile),
        (name=bronze, share=5, limit=20, type=profile))
The datase parameter db_performance_profile allows to associate the corresponding IORM service category to the instance:
SQL> alter system set db_performance_profile=silver scope=spfile;
Advertisements

Oracle Resource Manager



#############################################################
##    How to implement Oracle Resource Manager granting    ##
##    CONSUMER GROUPS to Clusterware services              ##
#############################################################

--Create a service for OLTP sessions
srvctl add service -d dbrac10 -s DBRAC10_OLTP -r dbrac11,dbrac12,dbrac13
srvctl start service -d dbrac10 -s DBRAC10_OLTP

--Create a service for BATCH sessions
srvctl add service -d dbrac10 -s DBRAC10_BATCH -r dbrac11,dbrac12,dbrac13
srvctl start service -d dbrac10 -s DBRAC10_BATCH


###################################################################
## Resource Plan Design:
## MGMT_P1=75% SYS_GROUP,  MGMT_P2=80% OLTP, MGMT_P2=10% BATCH, MGMT_P2=5%
## ORA$AUTOTASK_SUB_PLAN,  MGMT_P2=5% ORA$DIAGNOSTICS, MGMT_P3=70% OTHER_GROUPS
###################################################################

## Resource Plan Implementation:
BEGIN
DBMS_RESOURCE_MANAGER.CREATE_PENDING_AREA();
DBMS_RESOURCE_MANAGER.CREATE_PLAN(PLAN => 'REAL_TIME_PLAN', COMMENT => 'Respurce Plan for OLTP database');
DBMS_RESOURCE_MANAGER.CREATE_CONSUMER_GROUP (CONSUMER_GROUP => 'OLTP',CATEGORY => 'INTERACTIVE', COMMENT => 'OLTP sessions');
DBMS_RESOURCE_MANAGER.CREATE_CONSUMER_GROUP (CONSUMER_GROUP => 'BATCH', CATEGORY => 'BATCH', COMMENT => 'BATCH sessions');
DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (PLAN => 'REAL_TIME_PLAN', GROUP_OR_SUBPLAN => 'OLTP', COMMENT => 'OLTP group', MGMT_P2 => 80);
DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (PLAN => 'REAL_TIME_PLAN', GROUP_OR_SUBPLAN => 'BATCH', COMMENT => 'BATCH group',
MGMT_P3 => 70, PARALLEL_DEGREE_LIMIT_P1 => 6, ACTIVE_SESS_POOL_P1 => 4, MAX_IDLE_TIME => 240);
DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (PLAN => 'REAL_TIME_PLAN', GROUP_OR_SUBPLAN => 'SYS_GROUP', COMMENT => 'SYS group', MGMT_P1 => 70);
DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (PLAN => 'REAL_TIME_PLAN', GROUP_OR_SUBPLAN => 'OTHER_GROUPS', COMMENT => 'OTHER group', MGMT_P4 => 50);
DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (PLAN => 'REAL_TIME_PLAN',GROUP_OR_SUBPLAN => 'ORA$AUTOTASK_SUB_PLAN', COMMENT => 'ORA$AUTOTASK_SUB_PLAN group', MGMT_P3 => 20);
DBMS_RESOURCE_MANAGER.CREATE_PLAN_DIRECTIVE (PLAN => 'REAL_TIME_PLAN', GROUP_OR_SUBPLAN => 'ORA$DIAGNOSTICS', COMMENT => 'ORA$DIAGNOSTICS group', MGMT_P3 => 10);
DBMS_RESOURCE_MANAGER.SET_CONSUMER_GROUP_MAPPING (DBMS_RESOURCE_MANAGER.SERVICE_NAME, 'DBRAC10_OLTP', 'OLTP');
DBMS_RESOURCE_MANAGER.SET_CONSUMER_GROUP_MAPPING(DBMS_RESOURCE_MANAGER.SERVICE_NAME, 'DBRAC10_BATCH', 'BATCH');
DBMS_RESOURCE_MANAGER.VALIDATE_PENDING_AREA();
DBMS_RESOURCE_MANAGER.SUBMIT_PENDING_AREA();
DBMS_RESOURCE_MANAGER.CLEAR_PENDING_AREA();
END;
/

###################################################################


## Grant the Switch to the Users
BEGIN
DBMS_RESOURCE_MANAGER.CREATE_PENDING_AREA();
dbms_resource_manager_privs.grant_switch_consumer_group ('PERF_TEST','OLTP',FALSE);
dbms_resource_manager_privs.grant_switch_consumer_group ('PERF_TEST','BATCH',FALSE);
DBMS_RESOURCE_MANAGER.VALIDATE_PENDING_AREA();
DBMS_RESOURCE_MANAGER.SUBMIT_PENDING_AREA();
DBMS_RESOURCE_MANAGER.CLEAR_PENDING_AREA();
END;
/

###################################################################
## Enable the Resource plan with the FORCE Option to avoid the Scheduler window to
## activate a different plan during the job execution.
ALTER SYSTEM SET RESOURCE_MANAGER_PLAN = 'FORCE:REAL_TIME_PLAN';
###################################################################

## Example of Group and Plan Deletion:

BEGIN
DBMS_RESOURCE_MANAGER.DELETE_PLAN (PLAN => 'REAL_TIME_PLAN');
END;
/

BEGIN
DBMS_RESOURCE_MANAGER.DELETE_CONSUMER_GROUP(CONSUMER_GROUP => 'OLTP');
END;
/

BEGIN
DBMS_RESOURCE_MANAGER.DELETE_CONSUMER_GROUP(CONSUMER_GROUP => 'BATCH');
END;
/


###################################################################
## SQL Queries for monitoring Resource Manager  utilization:
###################################################################

## Check the service name used by each session
select inst_id, username, SERVICE_NAME, count(*) from gv$session
where SERVICE_NAME <>'SYS$BACKGROUND'
group by inst_id, username, SERVICE_NAME order by  order by 2,3,1;


## List the Active Resource Consumer Groups:
select INST_ID, NAME, ACTIVE_SESSIONS, EXECUTION_WAITERS, REQUESTS,
CPU_WAIT_TIME, CPU_WAITS, CONSUMED_CPU_TIME, YIELDS, QUEUE_LENGTH,
ACTIVE_SESSION_LIMIT_HIT from gV$RSRC_CONSUMER_GROUP where name in
('SYS_GROUP','BATCH','OLTP','OTHER_GROUPS') order by 2,1;
