EXADATA: How to enable Flash Cache WriteBack on a running system

In a recent tuning activity it was necessary to change the Exadata Smart Flash Cache from “WriteThrough” to “WriteBack“. Because the system was used in a 24/7 environment we had to implement the change in a Rolling Upgrade Fashion.

Here below are described the different steps.



From one DB node using dcli check the currest status of the storage cells:

[root@efudbadm02 ~]# dcli -g ~/cell_group -l root cellcli -e "list cell attributes flashcachemode"
efuceladm01: WriteThrough
efuceladm02: WriteThrough
efuceladm03: WriteThrough
efuceladm04: WriteThrough
efuceladm05: WriteThrough
efuceladm06: WriteThrough
efuceladm07: WriteThrough
efuceladm08: WriteThrough
efuceladm09: WriteThrough
efuceladm10: WriteThrough
efuceladm11: WriteThrough

From one DB node using dcli check that the properties asmdeactivationoutcome and asmmodestatus of all griddisks are respectively “Yes” and “ONLINE” before continuing with the change.

[root@efudbadm02 ~]# dcli -g cell_group -l root cellcli -e list griddisk attributes asmdeactivationoutcome, asmmodestatus
efuceladm01: Yes ONLINE
efuceladm01: Yes ONLINE
efuceladm01: Yes ONLINE
efuceladm01: Yes ONLINE
efuceladm01: Yes ONLINE
efuceladm01: Yes ONLINE
efuceladm01: Yes ONLINE
efuceladm01: Yes ONLINE
efuceladm01: Yes ONLINE
efuceladm01: Yes ONLINE
efuceladm01: Yes ONLINE
efuceladm01: Yes ONLINE
efuceladm01: Yes ONLINE
efuceladm01: Yes ONLINE
efuceladm01: Yes ONLINE
efuceladm01: Yes ONLINE
efuceladm02: Yes ONLINE
efuceladm02: Yes ONLINE
efuceladm02: Yes ONLINE
efuceladm02: Yes ONLINE
efuceladm02: Yes ONLINE
efuceladm02: Yes ONLINE
efuceladm02: Yes ONLINE
efuceladm02: Yes ONLINE
efuceladm02: Yes ONLINE
efuceladm02: Yes ONLINE
efuceladm02: Yes ONLINE
efuceladm02: Yes ONLINE
efuceladm02: Yes ONLINE
efuceladm02: Yes ONLINE
efuceladm02: Yes ONLINE
efuceladm02: Yes ONLINE
...
..
.

From one DB node using dcli check that all flashcache modules are in “normal” state and no flash disk is in degraded or critical state.

[root@efudbadm02 ~]# dcli -g cell_group -l root cellcli -e list flashcache detail
efuceladm01: name: efuceladm01_FLASHCACHE
efuceladm01: cellDisk: FD_00_efuceladm01,FD_07_efuceladm01,FD_06_efuceladm01,FD_03_efuceladm01,FD_05_efuceladm01,FD_01_efuceladm01,FD_02_efuceladm01,FD_04_efuceladm01
efuceladm01: creationTime: 2013-06-18T15:21:13+02:00
efuceladm01: degradedCelldisks:
efuceladm01: effectiveCacheSize: 744.125G
efuceladm01: id: 35b61001-438f-4d66-8ce9-40704f758d3f
efuceladm01: size: 744.125G
efuceladm01: status: normal
efuceladm02: name: efuceladm02_FLASHCACHE
efuceladm02: cellDisk: FD_06_efuceladm02,FD_05_efuceladm02,FD_00_efuceladm02,FD_02_efuceladm02,FD_01_efuceladm02,FD_07_efuceladm02,FD_03_efuceladm02,FD_04_efuceladm02
efuceladm02: creationTime: 2013-06-18T15:21:12+02:00
efuceladm02: degradedCelldisks:
efuceladm02: effectiveCacheSize: 744.125G
efuceladm02: id: 2f7eedd6-cda2-496e-98ec-417b94fb8ee7
efuceladm02: size: 744.125G
efuceladm02: status: normal
efuceladm03: name: efuceladm03_FLASHCACHE
efuceladm03: cellDisk: FD_00_efuceladm03,FD_04_efuceladm03,FD_01_efuceladm03,FD_02_efuceladm03,FD_03_efuceladm03,FD_06_efuceladm03,FD_05_efuceladm03,FD_07_efuceladm03
efuceladm03: creationTime: 2013-06-18T15:21:10+02:00
efuceladm03: degradedCelldisks:
efuceladm03: effectiveCacheSize: 744.125G
efuceladm03: id: c271cdb8-dc70-4009-ba97-dfc4c26b00ef
efuceladm03: size: 744.125G
efuceladm03: status: normal
...
..
.

Logon on the first Cell Storage and using CellCli interface perform the following procedure to enable the WriteBack Flash Cache in a rolling upgrade fashion.



Drop the existing flash cache

CellCLI> drop flashcache
Flash cache efuceladm01_FLASHCACHE successfully dropped

Inactivate the griddisk on the cell

CellCLI> alter griddisk all inactive
GridDisk DATA_CD_00_efuceladm01 successfully altered
GridDisk DATA_CD_01_efuceladm01 successfully altered
GridDisk DATA_CD_02_efuceladm01 successfully altered
GridDisk DATA_CD_03_efuceladm01 successfully altered
GridDisk DATA_CD_04_efuceladm01 successfully altered
GridDisk DATA_CD_05_efuceladm01 successfully altered
GridDisk DBFS_DG_CD_02_efuceladm01 successfully altered
GridDisk DBFS_DG_CD_03_efuceladm01 successfully altered
GridDisk DBFS_DG_CD_04_efuceladm01 successfully altered
GridDisk DBFS_DG_CD_05_efuceladm01 successfully altered
GridDisk RECO_CD_00_efuceladm01 successfully altered
GridDisk RECO_CD_01_efuceladm01 successfully altered
GridDisk RECO_CD_02_efuceladm01 successfully altered
GridDisk RECO_CD_03_efuceladm01 successfully altered
GridDisk RECO_CD_04_efuceladm01 successfully altered
GridDisk RECO_CD_05_efuceladm01 successfully altered

Shut down cellsrv service

CellCLI> alter cell shutdown services cellsrv

Stopping CELLSRV services...
The SHUTDOWN of CELLSRV services was successful.

Enable the Smart Flash Cache WriteBack

CellCLI> alter cell flashCacheMode=writeback
Cell efuceladm01 successfully altered

Restart the cellsrv service

CellCLI> alter cell startup services cellsrv

Starting CELLSRV services...
The STARTUP of CELLSRV services was successful.

Reactivate the griddisk on the cell

CellCLI> alter griddisk all active
GridDisk DATA_CD_00_efuceladm01 successfully altered
GridDisk DATA_CD_01_efuceladm01 successfully altered
GridDisk DATA_CD_02_efuceladm01 successfully altered
GridDisk DATA_CD_03_efuceladm01 successfully altered
GridDisk DATA_CD_04_efuceladm01 successfully altered
GridDisk DATA_CD_05_efuceladm01 successfully altered
GridDisk DBFS_DG_CD_02_efuceladm01 successfully altered
GridDisk DBFS_DG_CD_03_efuceladm01 successfully altered
GridDisk DBFS_DG_CD_04_efuceladm01 successfully altered
GridDisk DBFS_DG_CD_05_efuceladm01 successfully altered
GridDisk RECO_CD_00_efuceladm01 successfully altered
GridDisk RECO_CD_01_efuceladm01 successfully altered
GridDisk RECO_CD_02_efuceladm01 successfully altered
GridDisk RECO_CD_03_efuceladm01 successfully altered
GridDisk RECO_CD_04_efuceladm01 successfully altered
GridDisk RECO_CD_05_efuceladm01 successfully altered

Recreate the flash cache

CellCLI> create flashcache all
Flash cache efuceladm01_FLASHCACHE successfully created




Verify that the Smart Flash Cache WriteBackWriteBack option is enabled

[root@efuceladm01 ~]# cellcli -e list cell detail | grep flashCacheMode
 flashCacheMode: writeback

Before applying the change to the next Exadata Storage Server  wait that all griddisk are synronized and online.

[root@efuceladm01 ~]# cellcli -e list griddisk attributes name,asmmodestatus,asmdeactivationoutcome
 DATA_CD_00_efuceladm01 SYNCING Yes
 DATA_CD_01_efuceladm01 SYNCING Yes
 DATA_CD_02_efuceladm01 SYNCING Yes
 DATA_CD_03_efuceladm01 SYNCING Yes
 DATA_CD_04_efuceladm01 SYNCING Yes
 DATA_CD_05_efuceladm01 SYNCING Yes
 DBFS_DG_CD_02_efuceladm01 ONLINE Yes
 DBFS_DG_CD_03_efuceladm01 ONLINE Yes
 DBFS_DG_CD_04_efuceladm01 ONLINE Yes
 DBFS_DG_CD_05_efuceladm01 ONLINE Yes
 RECO_CD_00_efuceladm01 OFFLINE Yes
 RECO_CD_01_efuceladm01 OFFLINE Yes
 RECO_CD_02_efuceladm01 OFFLINE Yes
 RECO_CD_03_efuceladm01 OFFLINE Yes
 RECO_CD_04_efuceladm01 OFFLINE Yes
 RECO_CD_05_efuceladm01 OFFLINE Yes

Once the asmmodestatus is ONLINE on all griddisks it is safe to move to the next Storage Server.




At the end of the procedure all Storage Servers are configured with Smart Flash Cache WriteBach option:

[root@efudbadm02 ~]# dcli -g ~/cell_group -l root cellcli -e "list cell attributes flashcachemode"
efuceladm01: writeback
efuceladm02: writeback
efuceladm03: writeback
efuceladm04: writeback
efuceladm05: writeback
efuceladm06: writeback
efuceladm07: writeback
efuceladm08: writeback
efuceladm09: writeback
efuceladm10: writeback
efuceladm11: writeback



Advertisements

Patching Exadata Machine

################################################################
##    EXADATA MACHINE  INFRASTRUCTURE PATCHING of 1/8 RACK     ##
################################################################

This post describe step-by-step how to patch the infrastructure components of an Exadata Machine

———————————————————–
— Cell Storage Pre-requisites
———————————————————–

--Stop CRS using dcli
[root@ch01db01 oracle]# dcli -g /home/oracle/dbhosts -l root '/u01/app/12.1.0.2/grid/bin/crsctl stop crs'
 [root@ch01db01 oracle]# dcli -g /home/oracle/dbhosts -l root '/u01/app/12.1.0.2/grid/bin/crsctl stat res -t -init'
ch01db01: CRS-4639: Could not contact Oracle High Availability Services
ch01db01: CRS-4000: Command Status failed, or completed with errors.
ch01db02: CRS-4639: Could not contact Oracle High Availability Services
ch01db02: CRS-4000: Command Status failed, or completed with errors.
--Stop All Cell Storage Services
 [root@ch01db01 oracle]# dcli -g /home/oracle/cellhosts_ALL -l root "cellcli -e alter cell shutdown services all"
ch01celadm01:
ch01celadm01: Stopping the RS, CELLSRV, and MS services...
 ch01celadm01: The SHUTDOWN of services was successful.
 ch01celadm02:
 ch01celadm02: Stopping the RS, CELLSRV, and MS services...
 ch01celadm02: The SHUTDOWN of services was successful.
 ch01celadm03:
 ch01celadm03: Stopping the RS, CELLSRV, and MS services...
 ch01celadm03: The SHUTDOWN of services was successful.

[root@ch01db01 oracle]#



———————————————————–
–Cell Storage patching
———————————————————–

[root@ch01db01 patch_12.1.2.1.0.141206.1]# ./patchmgr -cells /home/oracle/cellhosts -reset_force
2016-02-05 11:17:07 +0100 :DONE: reset_force
[root@ch01db01 patch_12.1.2.1.0.141206.1]# ./patchmgr -cells /home/oracle/cellhosts -cleanup
2016-02-05 11:19:19 +0100        :Working: DO: Cleanup ...
2016-02-05 11:19:20 +0100        :SUCCESS: DONE: Cleanup
[root@ch01db01 patch_12.1.2.1.0.141206.1]# ./patchmgr -cells /home/oracle/cellhosts -patch_check_prereq
2016-02-05 11:20:56 +0100        :Working: DO: Check cells have ssh equivalence for root user. Up to 10 seconds per cell ...
 2016-02-05 11:20:57 +0100        :SUCCESS: DONE: Check cells have ssh equivalence for root user.
 2016-02-05 11:20:59 +0100        :Working: DO: Initialize files, check space and state of cell services. Up to 1 minute ...
 2016-02-05 11:21:01 +0100        :SUCCESS: DONE: Initialize files, check space and state of cell services.
 2016-02-05 11:22:19 +0100        :SUCCESS: DONE: Initialize files, check space and state of cell services.
 2016-02-05 11:22:19 +0100        :Working: DO: Copy, extract prerequisite check archive to cells. If required start md11 mismatched partner size correction. Up to 40 minutes ...
 2016-02-05 11:22:33 +0100 Wait correction of degraded md11 due to md partner size mismatch. Up to 30 minutes.
2016-02-05 11:22:34 +0100        :SUCCESS: DONE: Copy, extract prerequisite check archive to cells. If required start md11 mismatched partner size correction.
 2016-02-05 11:22:34 +0100        :Working: DO: Check prerequisites on all cells. Up to 2 minutes ...
 2016-02-05 11:23:38 +0100        :SUCCESS: DONE: Check prerequisites on all cells.
 2016-02-05 11:23:38 +0100        :Working: DO: Execute plugin check for Patch Check Prereq ...
 2016-02-05 11:23:38 +0100        :INFO: Patchmgr plugin start: Prereq check for exposure to bug 17854520 v1.3. Details in logfile /u02/p17885582_121210_Linux-x86-64/patch_12.1.2.1.0.141206.1/patchmgr.stdout.
 2016-02-05 11:23:38 +0100        :SUCCESS: No exposure to bug 17854520 with non-rolling patching
 2016-02-05 11:23:39 +0100        :SUCCESS: DONE: Execute plugin check for Patch Check Prereq.
[root@ch01db01 patch_12.1.2.1.0.141206.1]#
 [root@ch01db01 patch_12.1.2.1.0.141206.1]# ./patchmgr -cells /home/oracle/cellhosts -patch
********************************************************************************
 NOTE Cells will reboot during the patch or rollback process.
 NOTE For non-rolling patch or rollback, ensure all ASM instances using
 NOTE the cells are shut down for the duration of the patch or rollback.
 NOTE For rolling patch or rollback, ensure all ASM instances using
 NOTE the cells are up for the duration of the patch or rollback.
WARNING Do not start more than one instance of patchmgr.
 WARNING Do not interrupt the patchmgr session.
 WARNING Do not alter state of ASM instances during patch or rollback.
 WARNING Do not resize the screen. It may disturb the screen layout.
 WARNING Do not reboot cells or alter cell services during patch or rollback.
 WARNING Do not open log files in editor in write mode or try to alter them.
NOTE All time estimates are approximate.
 NOTE You may interrupt this patchmgr run in next 60 seconds with CONTROL-c.
********************************************************************************
2016-02-05 11:27:08 +0100        :Working: DO: Check cells have ssh equivalence for root user. Up to 10 seconds per cell ...
 2016-02-05 11:27:09 +0100        :SUCCESS: DONE: Check cells have ssh equivalence for root user.
 2016-02-05 11:27:12 +0100        :Working: DO: Initialize files, check space and state of cell services. Up to 1 minute ...
 2016-02-05 11:27:32 +0100        :SUCCESS: DONE: Initialize files, check space and state of cell services.
 2016-02-05 11:27:32 +0100        :Working: DO: Copy, extract prerequisite check archive to cells. If required start md11 mismatched partner size correction. Up to 40 minutes ...
 2016-02-05 11:27:45 +0100 Wait correction of degraded md11 due to md partner size mismatch. Up to 30 minutes.
2016-02-05 11:27:46 +0100        :SUCCESS: DONE: Copy, extract prerequisite check archive to cells. If required start md11 mismatched partner size correction.
 2016-02-05 11:27:46 +0100        :Working: DO: Check prerequisites on all cells. Up to 2 minutes ...
 2016-02-05 11:28:50 +0100        :SUCCESS: DONE: Check prerequisites on all cells.
 2016-02-05 11:28:50 +0100        :Working: DO: Copy the patch to all cells. Up to 3 minutes ...
 2016-02-05 11:29:22 +0100        :SUCCESS: DONE: Copy the patch to all cells.
 2016-02-05 11:29:24 +0100        :Working: DO: Execute plugin check for Patch Check Prereq ...
 2016-02-05 11:29:24 +0100        :INFO: Patchmgr plugin start: Prereq check for exposure to bug 17854520 v1.3. Details in logfile /u02/p17885582_121210_Linux-x86-64/patch_12.1.2.1.0.141206.1/patchmgr.stdout.
 2016-02-05 11:29:24 +0100        :SUCCESS: No exposure to bug 17854520 with non-rolling patching
 2016-02-05 11:29:25 +0100        :SUCCESS: DONE: Execute plugin check for Patch Check Prereq.
 2016-02-05 11:29:25 +0100 1 of 5 :Working: DO: Initiate patch on cells. Cells will remain up. Up to 5 minutes ...
 2016-02-05 11:29:37 +0100 1 of 5 :SUCCESS: DONE: Initiate patch on cells.
 2016-02-05 11:29:37 +0100 2 of 5 :Working: DO: Waiting to finish pre-reboot patch actions. Cells will remain up. Up to 45 minutes ...
 2016-02-05 11:30:37 +0100 Wait for patch pre-reboot procedures
2016-02-05 11:44:56 +0100 2 of 5 :SUCCESS: DONE: Waiting to finish pre-reboot patch actions.
 2016-02-05 11:44:56 +0100        :Working: DO: Execute plugin check for Patching ...
 2016-02-05 11:44:56 +0100        :SUCCESS: DONE: Execute plugin check for Patching.
 2016-02-05 11:44:56 +0100 3 of 5 :Working: DO: Finalize patch on cells. Cells will reboot. Up to 5 minutes ...
 2016-02-05 11:45:17 +0100 3 of 5 :SUCCESS: DONE: Finalize patch on cells.
 2016-02-05 11:45:17 +0100 4 of 5 :Working: DO: Wait for cells to reboot and come online. Up to 120 minutes ...
 2016-02-05 11:46:17 +0100 Wait for patch finalization and reboot
2016-02-05 13:09:24 +0100 4 of 5 :SUCCESS: DONE: Wait for cells to reboot and come online.
 2016-02-05 13:09:24 +0100 5 of 5 :Working: DO: Check the state of patch on cells. Up to 5 minutes ...
 2016-02-05 13:10:09 +0100 5 of 5 :SUCCESS: DONE: Check the state of patch on cells.
 2016-02-05 13:10:09 +0100        :Working: DO: Execute plugin check for Post Patch ...
 2016-02-05 13:10:10 +0100        :SUCCESS: DONE: Execute plugin check for Post Patch.
[root@ch01db01 patch_12.1.2.1.0.141206.1]#
[root@ch01db01 patch_12.1.2.1.0.141206.1]# dcli -c ch01celadm01 -l root 'imageinfo'
 ch01celadm01:
 ch01celadm01: Kernel version: 2.6.39-400.243.1.el6uek.x86_64 #1 SMP Wed Nov 26 09:15:35 PST 2014 x86_64
 ch01celadm01: Cell version: OSS_12.1.2.1.0_LINUX.X64_141206.1
 ch01celadm01: Cell rpm version: cell-12.1.2.1.0_LINUX.X64_141206.1-1.x86_64
 ch01celadm01:
 ch01celadm01: Active image version: 12.1.2.1.0.141206.1
 ch01celadm01: Active image activated: 2016-02-05 20:14:52 +0100
 ch01celadm01: Active image status: success
 ch01celadm01: Active system partition on device: /dev/md5
 ch01celadm01: Active software partition on device: /dev/md7
 ch01celadm01:
 ch01celadm01: Cell boot usb partition: /dev/sdac1
 ch01celadm01: Cell boot usb version: 12.1.2.1.0.141206.1
 ch01celadm01:
 ch01celadm01: Inactive image version: 12.1.1.1.1.140712
 ch01celadm01: Inactive image activated: 2014-08-06 11:50:09 +0200
 ch01celadm01: Inactive image status: success
 ch01celadm01: Inactive system partition on device: /dev/md6
 ch01celadm01: Inactive software partition on device: /dev/md8
 ch01celadm01:
 ch01celadm01: Inactive marker for the rollback: /boot/I_am_hd_boot.inactive
 ch01celadm01: Inactive grub config for the rollback: /boot/grub/grub.conf.inactive
 ch01celadm01: Inactive kernel version for the rollback: 2.6.39-400.128.17.el5uek
 ch01celadm01: Rollback to the inactive partitions: Possible
 [root@ch01db01 patch_12.1.2.1.0.141206.1]#

-----------------------------------------------------------
-- DB Server Patching
-----------------------------------------------------------

[root@ch01db02 dbnodeupdate]# ./dbnodeupdate.sh -h

Usage: dbnodeupdate.sh [ -u | -r | -c ] -l <baseurl|zip file> [-p] <phase> [-n] [-s] [-q] [-v] [-t] [-a] <alert.sh> [-b] [-m] | [-V] | [-h]
-u                       Upgrade
 -r                       Rollback
 -c                       Complete post actions (verify image status, cleanup, apply fixes, relink all homes, enable GI to start/start all domU's)
 -l <baseurl|zip file>    Baseurl (http or zipped iso file for the repository)
 -s                       Shutdown stack (domU's for VM) before upgrading/rolling back
 -p                       Bootstrap phase (1 or 2) only to be used when instructed by dbnodeupdate.sh
 -q                       Quiet mode (no prompting) only be used in combination with -t
 -n                       No backup will be created (Option disabled for systems being updated from Oracle Linux 5 to Oracle Linux 6)
 -t                       'to release' - used when in quiet mode or used when updating to one-offs/releases via 'latest' channel (requires 11.2.3.2.1)
 -v                       Verify prereqs only. Only to be used with -u and -l option
 -b                       Perform backup only
 -a <alert.sh>            Full path to shell script used for alert trapping
 -m                       Install / update-to exadata-sun/hp-computenode-minimum only (11.2.3.3.0 and later)
 -i                       Ignore /etc/oratab - relinking will be disabled. Only possible in combination with -c.
 -V                       Print version
 -h                       Print usage
For upgrading from releases 11.2.2.4.2 and later:
 Example using iso  : ./dbnodeupdate.sh -u -l /u01/p16432033_112321_Linux-x86-64.zip
 Example using http : ./dbnodeupdate.sh -u -l http://my-yum-repo.my-domain.com/yum/unknown/EXADATA/dbserver/11.2.3.3.0/base/x86_64/
 Example: ./dbnodeupdate.sh -u -l http://my-yum-repo.my-domain.com/yum/unknown/EXADATA/dbserver/11.2.3.2.1/base/x86_64/
 Example: ./dbnodeupdate.sh -u -l http://my-yum-repo.my-domain.com/yum/unknown/EXADATA/dbserver/11.2.3.3.0/base/x86_64/
For upgrading from releases 11.2.2.4.2 and later in quiet mode:
 Example: ./dbnodeupdate.sh -u -l /u01/p16432033_112321_Linux-x86-64.zip -q -t 11.2.3.2.1.130302
For completion steps:
 Example: ./dbnodeupdate.sh -c
For rollback:
 Example: ./dbnodeupdate.sh -r
For pre-req checks only:
 Example using iso  : ./dbnodeupdate.sh -u -l /u01/p16432033_112321_Linux-x86-64.zip -v
 Example using http : ./dbnodeupdate.sh -u -l http://my-yum-repo.my-domain.com/yum/unknown/EXADATA/dbserver/11.2.3.3.0/base/x86_64/ -v
For backup only:
 Example: ./dbnodeupdate.sh -u -l /u01/p16432033_112321_Linux-x86-64.zip -b
See MOS 1553103.1 for more examples
[root@ch01db02 dbnodeupdate]#

———————————– –DB Server patching Verification ———————————–

[root@ch01db02 dbnodeupdate]# ./dbnodeupdate.sh -u -l /u01/exapatch/p20170913_121210_Linux-x86-64/p20170913_121210_Linux-x86-64.zip -v
##########################################################################################################################
 #                                                                                                                        #
 # Guidelines for using dbnodeupdate.sh (rel. 4.18):                                                                      #
 #                                                                                                                        #
 # - Prerequisites for usage:                                                                                             #
 #         1. Refer to dbnodeupdate.sh options. See MOS 1553103.1                                                         #
 #         2. Use the latest release of dbnodeupdate.sh. See patch 16486998                                               #
 #         3. Run the prereq check with the '-v' option.                                                                  #
 #                                                                                                                        #
 #   I.e.:  ./dbnodeupdate.sh -u -l /u01/my-iso-repo.zip -v                                                               #
 #          ./dbnodeupdate.sh -u -l http://my-yum-repo -v                                                                 #
 #                                                                                                                        #
 # - Prerequisite dependency check failures can happen due to customization:                                              #
 #     - The prereq check detects dependency issues that need to be addressed prior to running a successful update.       #
 #     - Customized rpm packages may fail the built-in dependency check and system updates cannot proceed until resolved. #
 #                                                                                                                        #
 #   When upgrading from releases later than 11.2.2.4.2 to releases before 11.2.3.3.0:                                    #
 #      - Conflicting packages should be removed before proceeding the update.                                            #
 #                                                                                                                        #
 #   When upgrading to releases 11.2.3.3.0 or later:                                                                      #
 #      - When the 'exact' package dependency check fails 'minimum' package dependency check will be tried.               #
 #      - When the 'minimum' package dependency check also fails,                                                         #
 #        the conflicting packages should be removed before proceeding.                                                   #
 #                                                                                                                        #
 # - As part of the prereq checks and as part of the update, a number of rpms will be removed.                            #
 #   This removal is required to preserve Exadata functioning. This should not be confused with obsolete packages.        #
 #      - See /var/log/cellos/packages_to_be_removed.txt for details on what packages will be removed.                    #
 #                                                                                                                        #
 # - In case of any problem when filing an SR, upload the following:                                                      #
 #      - /var/log/cellos/dbnodeupdate.log                                                                                #
 #      - /var/log/cellos/dbnodeupdate.<runid>.diag                                                                       #
 #      - where <runid> is the unique number of the failing run.                                                          #
 #                                                                                                                        #
 ##########################################################################################################################
Continue ? [y/n]
 y
(*) 2016-02-05 17:06:43: Unzipping helpers (/u01/exapatch/dbnodeupdate/dbupdate-helpers.zip) to /opt/oracle.SupportTools/dbnodeupdate_helpers
 (*) 2016-02-05 17:06:43: Initializing logfile /var/log/cellos/dbnodeupdate.log
 (*) 2016-02-05 17:06:44: Collecting system configuration settings. This may take a while...
 (*) 2016-02-05 17:07:10: Validating system settings for known issues and best practices. This may take a while...
 (*) 2016-02-05 17:07:10: Checking free space in /u01/exapatch/p20170913_121210_Linux-x86-64/iso.stage.050215170641
 (*) 2016-02-05 17:07:10: Unzipping /u01/exapatch/p20170913_121210_Linux-x86-64/p20170913_121210_Linux-x86-64.zip to /u01/exapatch/p20170913_121210_Linux-x86-64/iso.stage.050215170641, this may take a while
 (*) 2016-02-05 17:07:23: Original /etc/yum.conf moved to /etc/yum.conf.050215170641, generating new yum.conf
 (*) 2016-02-05 17:07:23: Generating Exadata repository file /etc/yum.repos.d/Exadata-computenode.repo
 (*) 2016-02-05 17:07:56: Validating the specified source location.
 (*) 2016-02-05 17:07:57: Cleaning up the yum cache.

—————————————————————————————————————————–
Running in prereq check mode
—————————————————————————————————————————–

Active Image version   : 12.1.1.1.1.140712
 Active Kernel version  : 2.6.39-400.128.17.el5uek
 Active LVM Name        : /dev/mapper/VGExaDb-LVDbSys1
 Inactive Image version : 12.1.1.1.0.131219
 Inactive LVM Name      : /dev/mapper/VGExaDb-LVDbSys2
 Current user id        : root
 Action                 : upgrade
 Upgrading to           : 12.1.2.1.0.141206.1 - Oracle Linux 5->6 upgrade
 Baseurl                : file:///var/www/html/yum/unknown/EXADATA/dbserver/050215170641/x86_64/ (iso)
 Iso file               : /u01/exapatch/p20170913_121210_Linux-x86-64/iso.stage.050215170641/exadata_ol6_base_repo_141206.1.iso
 Create a backup        : Yes (backup at update mandatory when updating from OL5 to OL6)
 Shutdown stack         : No (Currently stack is down)
 RPM exclusion list     : Function not available for OL5->OL6 upgrades
 RPM obsolete list      : Function not available for OL5->OL6 upgrades
 Exact dependencies     : Function not available for OL5->OL6 upgrades
 Minimum dependencies   : Function not available for OL5->OL6 upgrades
 Logfile                : /var/log/cellos/dbnodeupdate.log (runid: 050215170641)
 Diagfile               : /var/log/cellos/dbnodeupdate.050215170641.diag
 Server model           : SUN FIRE X4170 M3
 dbnodeupdate.sh rel.   : 4.18 (always check MOS 1553103.1 for the latest release of dbnodeupdate.sh)
 Note                   : After upgrading and rebooting run './dbnodeupdate.sh -c' to finish post steps.
The following known issues will be checked for and automatically corrected by dbnodeupdate.sh:
 (*) - Issue - Fix for CVE-2014-9295 AND ELSA-2014-1974
The following known issues will be checked for but require manual follow-up:
 (*) - Issue - Yum rolling update requires fix for 11768055 when Grid Infrastructure is below 11.2.0.2 BP12
 (*) - Issue - Exafusion silently enabled for database 12.1.0.2.0 with kernel 2.6.39-400.200 and later. See MOS 1947476.1 for more details.
---------------------------------------------------------------------------------------------------------------------
 NOTE:
 When upgrading to Oracle Linux 6 a backup is required for systems configured with logical volume manager (lvm).
 It appears no backup of the current image exist on the inactive lvm.
 This means a mandatory backup will be made using dbnodeupdate.sh before the actual update starts.
 ---------------------------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------

-------------------------------------------
 Prereq check finished successfully, check the above report for next steps.
 -----------------------------------------------------------------------------------------------------------------------------
(*) 2016-02-05 17:08:01: Cleaning up iso and temp mount points
[root@ch01db02 dbnodeupdate]#

———————————–

–DB Server patching Execution

———————————–

[root@ch01db02 dbnodeupdate]# ./dbnodeupdate.sh -u -l /u01/exapatch/p20170913_121210_Linux-x86-64/p20170913_121210_Linux-x86-64.zip
##########################################################################################################################
 #                                                                                                                        #
 # Guidelines for using dbnodeupdate.sh (rel. 4.18):                                                                      #
 #                                                                                                                        #
 # - Prerequisites for usage:                                                                                             #
 #         1. Refer to dbnodeupdate.sh options. See MOS 1553103.1                                                         #
 #         2. Use the latest release of dbnodeupdate.sh. See patch 16486998                                               #
 #         3. Run the prereq check with the '-v' option.                                                                  #
 #                                                                                                                        #
 #   I.e.:  ./dbnodeupdate.sh -u -l /u01/my-iso-repo.zip -v                                                               #
 #          ./dbnodeupdate.sh -u -l http://my-yum-repo -v                                                                 #
 #                                                                                                                        #
 # - Prerequisite dependency check failures can happen due to customization:                                              #
 #     - The prereq check detects dependency issues that need to be addressed prior to running a successful update.       #
 #     - Customized rpm packages may fail the built-in dependency check and system updates cannot proceed until resolved. #
 #                                                                                                                        #
 #   When upgrading from releases later than 11.2.2.4.2 to releases before 11.2.3.3.0:                                    #
 #      - Conflicting packages should be removed before proceeding the update.                                            #
 #                                                                                                                        #
 #   When upgrading to releases 11.2.3.3.0 or later:                                                                      #
 #      - When the 'exact' package dependency check fails 'minimum' package dependency check will be tried.               #
 #      - When the 'minimum' package dependency check also fails,                                                         #
 #        the conflicting packages should be removed before proceeding.                                                   #
 #                                                                                                                        #
 # - As part of the prereq checks and as part of the update, a number of rpms will be removed.                            #
 #   This removal is required to preserve Exadata functioning. This should not be confused with obsolete packages.        #
 #      - See /var/log/cellos/packages_to_be_removed.txt for details on what packages will be removed.                    #
 #                                                                                                                        #
 # - In case of any problem when filing an SR, upload the following:                                                      #
 #      - /var/log/cellos/dbnodeupdate.log                                                                                #
 #      - /var/log/cellos/dbnodeupdate.<runid>.diag                                                                       #
 #      - where <runid> is the unique number of the failing run.                                                          #
 #                                                                                                                        #
 ##########################################################################################################################
Continue ? [y/n]
 y
(*) 2016-02-05 17:09:38: Unzipping helpers (/u01/exapatch/dbnodeupdate/dbupdate-helpers.zip) to /opt/oracle.SupportTools/dbnodeupdate_helpers
 (*) 2016-02-05 17:09:38: Initializing logfile /var/log/cellos/dbnodeupdate.log
 (*) 2016-02-05 17:09:39: Collecting system configuration settings. This may take a while...
 (*) 2016-02-05 17:10:07: Validating system settings for known issues and best practices. This may take a while...
 (*) 2016-02-05 17:10:07: Checking free space in /u01/exapatch/p20170913_121210_Linux-x86-64/iso.stage.050215170936
 (*) 2016-02-05 17:10:07: Unzipping /u01/exapatch/p20170913_121210_Linux-x86-64/p20170913_121210_Linux-x86-64.zip to /u01/exapatch/p20170913_121210_Linux-x86-64/iso.stage.050215170936, this may take a while
 (*) 2016-02-05 17:10:19: Original /etc/yum.conf moved to /etc/yum.conf.050215170936, generating new yum.conf
 (*) 2016-02-05 17:10:19: Generating Exadata repository file /etc/yum.repos.d/Exadata-computenode.repo
 (*) 2016-02-05 17:10:42: Validating the specified source location.
 (*) 2016-02-05 17:10:43: Cleaning up the yum cache.
Active Image version   : 12.1.1.1.1.140712
 Active Kernel version  : 2.6.39-400.128.17.el5uek
 Active LVM Name        : /dev/mapper/VGExaDb-LVDbSys1
 Inactive Image version : 12.1.1.1.0.131219
 Inactive LVM Name      : /dev/mapper/VGExaDb-LVDbSys2
 Current user id        : root
 Action                 : upgrade
 Upgrading to           : 12.1.2.1.0.141206.1 - Oracle Linux 5->6 upgrade
 Baseurl                : file:///var/www/html/yum/unknown/EXADATA/dbserver/050215170936/x86_64/ (iso)
 Iso file               : /u01/exapatch/p20170913_121210_Linux-x86-64/iso.stage.050215170936/exadata_ol6_base_repo_141206.1.iso
 Create a backup        : Yes (backup at update mandatory when updating from OL5 to OL6)
 Shutdown stack         : No (Currently stack is down)
 RPM exclusion list     : Function not available for OL5->OL6 upgrades
 RPM obsolete list      : Function not available for OL5->OL6 upgrades
 Exact dependencies     : Function not available for OL5->OL6 upgrades
 Minimum dependencies   : Function not available for OL5->OL6 upgrade
 Logfile                : /var/log/cellos/dbnodeupdate.log (runid: 050215170936)
 Diagfile               : /var/log/cellos/dbnodeupdate.050215170936.diag
 Server model           : SUN FIRE X4170 M3
 dbnodeupdate.sh rel.   : 4.18 (always check MOS 1553103.1 for the latest release of dbnodeupdate.sh)
 Note                   : After upgrading and rebooting run './dbnodeupdate.sh -c' to finish post steps.
The following known issues will be checked for and automatically corrected by dbnodeupdate.sh:
 (*) - Issue - Fix for CVE-2014-9295 AND ELSA-2014-1974
The following known issues will be checked for but require manual follow-up:
 (*) - Issue - Yum rolling update requires fix for 11768055 when Grid Infrastructure is below 11.2.0.2 BP12
 (*) - Issue - Exafusion silently enabled for database 12.1.0.2.0 with kernel 2.6.39-400.200 and later. See MOS 1947476.1 for more details.
Continue ? [y/n]
 y
(*) 2016-02-05 17:11:59: Verifying GI and DB''s are shutdown
 (*) 2016-02-05 17:12:00: Collecting console history for diag purposes
 (*) 2016-02-05 17:12:32: Unmount of /boot successful
 (*) 2016-02-05 17:12:32: Check for /dev/sda1 successful
 (*) 2016-02-05 17:12:32: Mount of /boot successful
 (*) 2016-02-05 17:12:32: Disabling stack from starting
 (*) 2016-02-05 17:12:33: Performing filesystem backup to /dev/mapper/VGExaDb-LVDbSys2. Avg. 30 minutes (maximum 120) depends per environment.......
 (*) 2016-02-05 17:18:44: Backup successful
 (*) 2016-02-05 17:18:47: ExaWatcher stopped successful
 (*) 2016-02-05 17:19:07: EM Agent (in /u01/app/oracle/product/agent12c/core/12.1.0.4.0) stopped successfully
 (*) 2016-02-05 17:19:07: Capturing service status and file attributes. This may take a while...
 (*) 2016-02-05 17:19:12: Service status and file attribute report in: /etc/exadata/reports
 (*) 2016-02-05 17:19:12: Validating the specified source location.
 (*) 2016-02-05 17:19:13: Cleaning up the yum cache.
 (*) 2016-02-05 17:19:14: Executing OL5->OL6 upgrade steps, system is expected to reboot multiple times.
 (*) 2016-02-05 17:21:37: Initialize of Oracle Linux 6 Upgrade successful. Rebooting now...
Broadcast message from root (pts/0) (Thu Feb  5 17:21:37 2015):
The system is going down for reboot NOW!
[root@ch01db02 dbnodeupdate]#
[root@ch01db02 dbnodeupdate]# ./dbnodeupdate.sh -c

———————————–
–Output new Image Version
———————————–

[root@ch01db01 ibdiagtools]# imageinfo
Kernel version: 2.6.39-400.243.1.el6uek.x86_64 #1 SMP Wed Nov 26 09:15:35 PST 2014 x86_64
 Image version: 12.1.2.1.0.141206.1
 Image activated: 2016-02-05 18:24:46 +0100
 Image status: success
 System partition on device: /dev/mapper/VGExaDb-LVDbSys1
Featured

ASM 12c

A powerful framework for storage management



1 INTRODUCTION

Oracle Automatic Storage Management (ASM) is a well-known, largely used multi-platform volume manager and file system, designed for single-instance and clustered environment. Developed for managing Oracle database files with optimal performance and native data protection, simplifying the storage management; nowadays ASM includes several functionalities for general-purpose files too.
This article focuses on the architecture and characteristics of the version 12c, where great changes and enhancements of pre-existing capabilities have been introduced by Oracle.
Dedicated sections explaining how Oracle has leveraged ASM within the Oracle Engineered Systems complete the paper.



1.1 ASM 12c Instance Architecture Diagram

Below are highlighted the functionalities and the main background components associated to an ASM instance. It is important to notice how starting from Oracle 12c a database can run within ASM Disk Groups or on top of ASM Cluster file systems (ACFS).



ASM_db



Overview ASM options available in Oracle 12c.

ACFS



1.2       ASM 12c Multi-Nodes Architecture Diagram

In a Multi-node cluster environment, ASM 12c is now available in two configurations:

  • 11gR2 like: with one ASM instance on each Grid Infrastructure node.
  • Flex ASM: a new concept, which leverages the architecture availability and performance of the cluster; removing the 1:1 hard dependency between cluster node and local ASM instance. With Flex ASM only few nodes of the cluster run an ASM instance, (the default cardinality is 3) and the database instances communicate with ASM in two possible way: locally or over the ASM Network. In case of failure of one ASM instance, the databases automatically and transparently reconnect to another surviving instance on the cluster. This major architectural change required the introduction of two new cluster resources, ASM-Listener for supporting remote client connections and ADVM-Proxy, which permits the access to the ACFS layer. In case of wide cluster installation, Flex ASM enhances the performance and the scalability of the Grid Infrastructure, reducing the amount of network traffic generated between ASM instances.



Below two graphical representations of the same Oracle cluster; on the first drawing ASM is configured with pre-12c setup, on the second one Flex ASM is in use.

ASM architecture 11gR2 like

01_NO_FlexASM_Drawing

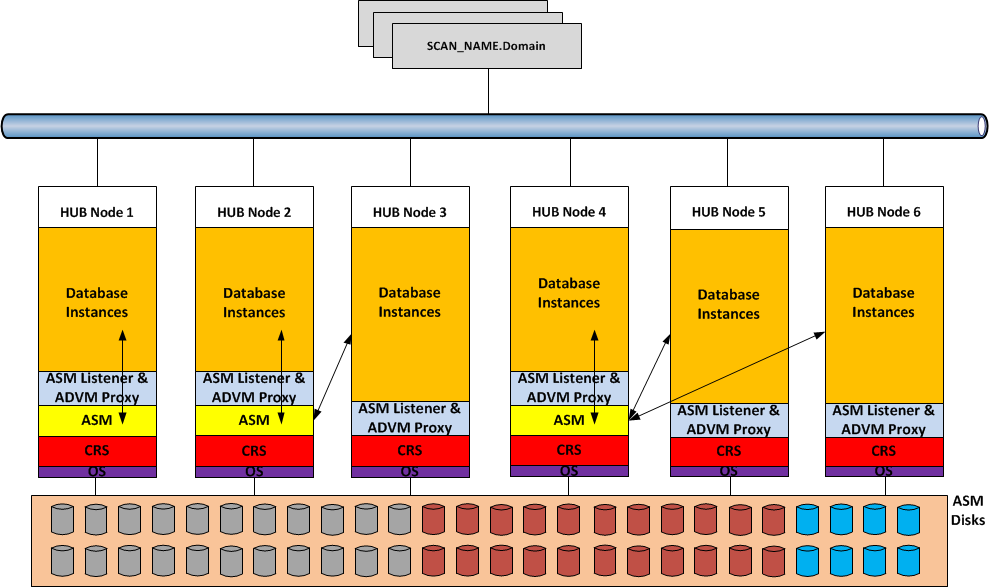

Flex ASM architecture

01_FlexASM_Drawing





2  ASM 12c NEW FEATURES

The table below summarizes the list of new functionalities introduced on ASM 12c R1

Feature Definition
Filter Driver Filter Driver (Oracle ASMFD) is a kernel module that resides in the I/O

path of the Oracle ASM disks used to validate write I/O requests to Oracle ASM disks, eliminates accidental overwrites of Oracle ASM disks that would cause corruption. For example, the Oracle ASM Filter Driver filters out all non-Oracle I/Os which could cause accidental overwrites.

General ASM Enhancements –       Oracle ASM now replicates physically addressed metadata, such as the disk header and allocation tables, within each disk, offering a better protection against bad block disk sectors and external corruptions.

–       Increased storage limits: ASM can manage up to 511 disk groups and a maximum disk size of 32 PB.

–       New REPLACE clause on the ALTER DISKGROUP statement.

Disk Scrubbing Disk scrubbing checks logical data corruptions and repairs the corruptions automatically in normal and high redundancy disks groups. This process automatically starts during rebalance operations or the administrator can trigger it.
Disk Resync Enhancements It enables fast recovery from instance failure and faster resyncs performance. Multiple disks can be brought online simultaneously. Checkpoint functionality enables to resume from the point where the process was interrupted.
Even Read For Disk Groups If ASM mirroring is in use, each I/O request submitted to the system can be satisfied by more than one disk. With this feature, each request to read is sent to the least loaded of the possible source disks.
ASM Rebalance Enhancements The rebalance operation has been improved in term of scalability, performance, and reliability; supporting concurrent operations on multiple disk groups in a single instance.  In this version, it has been enhanced also the support for thin provisioning, user-data validation, and error handling.
ASM Password File in a Disk Group ASM Password file is now stored within the ASM disk group.
Access Control Enhancements on Windows It is now possible to use access control to separate roles in Windows environments. With Oracle Database services running as users rather than Local System, the Oracle ASM access control feature is enabled to support role separation on Windows.
Rolling Migration Framework for ASM One-off Patches This feature enhances the rolling migration framework to apply oneoff patches released for ASM in a rolling manner, without affecting the overall availability of the cluster or the database



Updated Key Management Framework This feature updates Oracle key management commands to unify the key management application programming interface (API) layer. The updated key management framework makes interacting with keys in the wallet easier and adds new key metadata that describes how the keys are being used.





2.1 ASM 12c Client Cluster

One more ASM functionality explored but still in phase of development and therefore not really documented by Oracle, is ASM Client Cluster

Designed to host applications requiring cluster functionalities (monitoring, restart and failover capabilities), without the need to provision local shared storage.

The ASM Client Cluster installation is available as configuration option of the Grid Infrastructure binaries, starting from version 12.1.0.2.1 with Oct. 2014 GI PSU.

The use of ASM Client Cluster imposes the following pre-requisites and limitations:

  • The existence of an ASM Server Cluster version 12.1.0.2.1 with Oct. 2014 GI PSU, configured with the GNS server with or without zone delegation.
  • The ASM Server Cluster becomes aware of the ASM Client Cluster by importing an ad hoc XML configuration containing all details.
  • The ASM Client Cluster uses the OCR, Voting Files and Password File of the ASM Server Cluster.
  • ASM Client Cluster communicates with the ASM Server Cluster over the ASM Network.
  • ASM Server Cluster provides remote shared storage to ASM Client Cluster.



As already mentioned, at the time of writing this feature is still under development and without official documentation available, the only possible comment is that the ASM Client Cluster looks similar to another option introduced by Oracle 12c and called Flex Cluster. In fact, Flex Cluster has the concept of HUB and LEAF nodes; the first used to run database workload with direct access to the ASM disks and the second used to host applications in HA configuration but without direct access to the ASM disks.





3  ACFS NEW FEATURES

In Oracle 12c the Automatic Storage Management Cluster File System supports more and more types of files, offering advanced functionalities like snapshot, replication, encryption, ACL and tagging.  It is also important to highlight that this cluster file system comply with the POSIX standards of Linux/UNIX and with the Windows standards.

Access to ACFS from outside the Grid Infrastructure cluster is granted by NFS protocol; the NFS export can be registered as clusterware resource becoming available from any of the cluster nodes (HANFS).

Here is an exhaustive list of files supported by ACFS: executables, trace files, logs, application reports, BFILEs, configuration files, video, audio, text, images, engineering drawings, general-purpose and Oracle database files.

The major change, introduced in this version of ACFS, is definitely the capability and support to host Oracle database files; granting access to a set of functionalities that in the past were restricted to customer files only. Among them, the most important is the snapshot image, which has been fully integrated with the database Multitenant architecture, allowing cloning entire Pluggable databases in few seconds, independently from the size and in space efficient way using copy-on-write technology.

The snapshots are created and immediately available in the “<FS_mount_point>.ASFS/snaps” directory, and can be generated and later converted from read-only to read/write and vice versa. In addition, ACFS supports nested snapshots.



Example of ACFS snapshot copy:

-- Create a read/write Snapshot copy
[grid@oel6srv02 bin]$ acfsutil snap create -w cloudfs_snap /cloudfs

-- Display Snapshot Info
[grid@oel6srv02 ~]$ acfsutil snap info cloudfs_snap /cloudfs
snapshot name:               cloudfs_snap
RO snapshot or RW snapshot:  RW
parent name:                 /cloudfs
snapshot creation time:      Wed May 27 16:54:53 2015

-- Display specific file info
[grid@oel6srv02 ~]$ acfsutil info file /cloudfs/scripts/utl_env/NEW_SESSION.SQL
/cloudfs/scripts/utl_env/NEW_SESSION.SQL
flags:        File
inode:        42
owner:        oracle
group:        oinstall
size:         684
allocated:    4096
hardlinks:    1
device index: 1
major, minor: 251,91137
access time:  Wed May 27 10:34:18 2013
modify time:  Wed May 27 10:34:18 2013
change time:  Wed May 27 10:34:18 2013
extents:
-offset ----length | -dev --------offset
0       4096 |    1     1496457216
extent count: 1

--Convert the snapshot from Read/Write to Read-only
acfsutil snap convert -r cloudfs_snap /cloudfs

 --Drop the snapshot
[grid@oel6srv02 ~]$ acfsutil snap delete cloudfs_snap /cloudfs

Example of Pluggable database cloned using ACFS snapshot copy List of requirements that must be met to use ACFS SNAPSHOT COPY clause:

      • All pluggable database files of the source PDB must be stored on ACFS.





      • The source PDB cannot be in a remote CDB.





      • The source PDB must be in read-only mode.





      • Dropping the parent PDB with the including datafiles clause, does not automatically remove the snapshot dependencies, manual intervention is required.





SQL> CREATE PLUGGABLE DATABASE pt02 FROM ppq01
2  FILE_NAME_CONVERT = ('/u02/oradata/CDB4/PPQ01/',
3                       '/u02/oradata/CDB4/PT02/')
4  SNAPSHOT COPY;
Pluggable database created.
Elapsed: 00:00:13.70

The PDB snapshot copy imposes few restrictions among which the source database opened in read-only. This requirement prevents the implementation on most of the production environments where the database must remain available in read/write 24h/7. For this reason, ACFS for database files is particularly recommended on test and development where flexibility, speed and space efficiency of the clones are key factors for achieving high productive environment.

Graphical representation of how efficiently create and maintain a Test & Development database environment:

DB_Snapshot





4 ASM 12c and ORACLE ENGINEERED SYSTEMS

Oracle has developed few ASM features to leverage the characteristics of the Engineered Systems. Analyzing the architecture of the Exadata Storage, we see how the unique capabilities of ASM make possible to stripe and mirror data across independent set of disks grouped in different Storage Cells.

The sections below describe the implementation of ASM on the Oracle Database Appliance (ODA) and Exadata systems.





4.1 ASM 12c on Oracle Database Appliance

Oracle Database Appliance is a simple, reliable and affordable system engineered for running database workloads. One of the key characteristics present since the first version is the pay-as-you-grow model; it permits to activate a crescendo number of CPU-cores when needed, optimizing the licensing cost. With the new version of the ODA software bundle, Oracle has introduced the configuration Solution-in-a-box; which includes the virtualization layer for hosting Oracle databases and application components on the same appliance, but on separate virtual machines. The next sections highlight how the two configurations are architected and the role played by ASM:

  • ODA Bare metal: available since version one of the appliance, this is still the default configuration proposed by Oracle. Beyond the automated installation process, it is like any other two-node cluster, with all ASM and ACFS features available.



ODA_Bare_Metal



  • ODA Virtualized: on both ODA servers runs the Oracle VM Server software, also called Dom0. Each Dom0 hosts the ODA Base (or Dom Base), a privileged virtual machine where it is installed the Appliance Manager, Grid Infrastructure and RDBMS binaries. The ODA Base takes advantage of the Xen PCI Pass-through technology to provide direct access to the ODA shared disks presented and managed by ASM. This configuration reduces the VM flexibility; in fact, no VM migration is allowed, but it guarantees almost no I/O penalty in term of performance. After the Dom Base creation, it is possible to add Virtual Machine where running application components. Those optional application virtual machines are also identified with the name of Domain U.

By default, all VMs and templates are stored on a local Oracle VM Server repository, but in order to be able to migrate application virtual machines between the two Oracle VM Servers a shared repository on the ACFS file system should be created.

The implementation of the Solution-in-a-box guarantees the maximum Return on Investment of the ODA, because while licensing only the virtual CPUs allocated to Dom Base, the remaining resources are assigned to the application components as showed on the picture below.

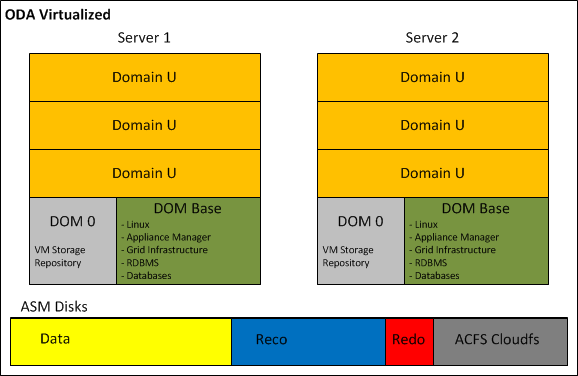

ODA_Virtualized





4.2 ACFS Becomes the default database storage of ODA

Starting from Version 12.1.0.2, a fresh installation of the Oracle Database Appliance adopts ACFS as primary cluster file system to store database files and general-purpose data. Three file systems are created in the ASM disk groups (DATA, RECO, and REDO) and the new databases are stored in these three ACFS file systems instead of in the ASM disk groups.

In case of ODA upgrade from previous release to 12.1.0.2, all pre-existing databases are not automatically migrated to ACFS; but can coexist with the new databases created on ACFS.

At any time, the databases can be migrated from ASM to ACFS as post upgrade step.

Oracle has decided to promote ACFS as default database storage on ODA environment for the following reasons:



  • ACFS provides almost equivalent performance than Oracle ASM disk groups.
  • Additional functionalities on industry standard POSIX file system.
  • Database snapshot copy of PDBs, and NON-CDB version 11.2.0.4 of greater.
  • Advanced functionality for general-purpose files such as replication, tagging, encryption, security, and auditing.

Database created on ACFS follows the same Oracle Managed Files (OMF) standard used by ASM.





4.3 ASM 12c on Exadata Machine

Oracle Exadata Database machine is now at the fifth hardware generation; the latest software update has embraced the possibility to run virtual environments, but differently from the ODA or other Engineered System like Oracle Virtual Appliance, the VMs are not intended to host application components. ASM plays a key role on the success of the Exadata, because it orchestrates all Storage Cells in a way that appear as a single entity, while in reality, they do not know and they do not talk to each other.

The Exadata, available in a wide range of hardware configurations from 1/8 to multi-racks, offers a great flexibility on the storage setup too. The sections below illustrate what is possible to achieve in term of storage configuration when the Exadata is exploited bare metal and virtualized:

  • Exadata Bare Metal: despite the default storage configuration, which foresees three disk groups striped across all Storage Cells, guaranteeing the best I/O performance; as post-installation step, it is possible to deploy a different configuration. Before changing the storage setup, it is vital to understand and evaluate all associated consequences. In fact, even though in specific cases can be a meaningful decision, any storage configuration different from the default one, has as result a shift from optimal performance to flexibility and workload isolation.

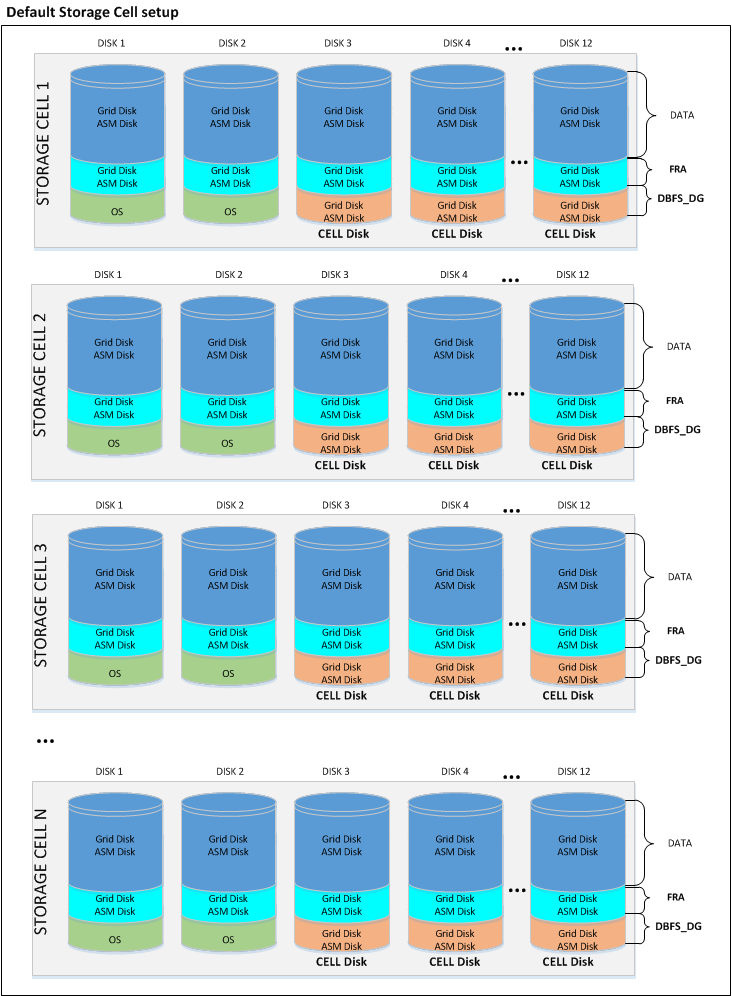

Shown below a graphical representation of the default Exadata storage setup, compared to a custom configuration, where the Storage Cells have been divided in multiple groups, segmenting the I/O workloads and avoiding disruption between environments.

Exa_BareMetal_Disks_Default


  • Exadata Virtualized: the installation of the Exadata with the virtualization option foresees a first step of meticulous capacity planning, defining the resources to allocate to the virtual machines (CPU and memory) and the size of each ASM disk group (DBFS, Data, Reco) of the clusters. This last step is particularly important, because unlike the VM resources, the characteristics of the ASM disk groups cannot be changed.

The new version of the Exadata Deployment Assistant, which generates the configuration file to submit to the Exadata installation process, now in conjunction with the use of Oracle Virtual Machines, permits to enter the information related to multiple Grid Infrastructure clusters.

The hardware-based I/O virtualization (so called Xen SR-IOV Virtualization), implemented on the Oracle VMs running on the Exadata Database servers, guarantees almost native I/O and Networking performance over InfiniBand; with lower CPU consumption when compared to a Xen Software I/O virtualization. Unfortunately, this performance advantage comes at the detriment of other virtualization features like Load Balancing, Live Migration and VM Save/Restore operations.

If the Exadata combined with the virtualization open new horizon in term of database consolidation and licensing optimization, do not leave any option to the storage configuration. In fact, the only possible user definition is the amount of space to allocate to each disk group; with this information, the installation procedure defines the size of the Grid Disks on all available Storage Cells.

Following a graphical representation of the Exadata Storage Cells, partitioned for holding three virtualized clusters. For each cluster, ASM access is automatically restricted to the associated Grid Disks.

Exa_BareMetal_Disk_Virtual





4.4 ACFS on Linux Exadata Database Machine

Starting from version 12.1.0.2, the Exadata Database Machine running Oracle Linux, supports ACFS for database file and general-purpose, with no functional restriction.

This makes ACFS an attractive storage alternative for holding: external tables, data loads, scripts and general-purpose files.

In addition, Oracle ACFS on Exadata Database Machines supports database files for the following database versions:

  • Oracle Database 10g Rel. 2 (10.2.0.4 and 10.2.0.5)
  • Oracle Database 11g (11.2.0.4 and higher)
  • Oracle Database 12c (12.1.0.1 and higher)

Since Exadata Storage Cell does not support database version 10g, ACFS becomes an important storage option for customers wishing to host older databases on their Exadata system.

However, those new configuration options and flexibility come with one major performance restriction. When ACFS for database files is in use, the Exadata is still not supporting the Smart Scan operations and is not able to push database operations directly to the storage. Hence, for a best performance result, it is recommended to store database files on the Exadata Storage using ASM disk groups.

As per any other system, when implementing ACFS on Exadata Database Machine, snapshots and tagging are supported for database and general-purpose files, while replication, security, encryption, audit and high availability NFS functionalities are only supported with general-purpose files.





 5 Conclusion

Oracle Automatic Storage Management 12c is a single integrated solution, designed to manage database files and general-purpose data under different hardware and software configurations. The adoption of ASM and ACFS not only eliminates the need for third party volume managers and file systems, but also simplifies the storage management offering the best I/O performance, enforcing Oracle best practices. In addition, ASM 12c with the Flex ASM setup removes previous important architecture limitations:

  • Availability: the hard dependency between the local ASM and database instance, was a single point of failure. In fact, without Flex ASM, the failure of the ASM instance causes the crash of all local database instances.
  • Performance: Flex ASM reduces the network traffic generated among the ASM instances, leveraging the architecture scalability; and it is easier and faster to keep the ASM metadata synchronized across large clusters. Finally yet importantly, only few nodes of the cluster have to support the burden of an ASM instance, leaving additional resources to application processing.



Oracle ASM offers a large set of configurations and options; it is now our duty to understand case-by-case, when it is relevant to use one setup or another, with the aim to maximize performance, availability and flexibility of the infrastructure.
