Exadata X8M introduces BIG Architectural Changes

Launched at the 2019 Oracle Open Word Conference the Exadata X8M introduces few big architectural changes which make the leading Oracle Database Machine even more attractive.

Among the most relevant changes there are:

  • InfiniBand Network replacement with an Ethernet network fabric
  • Intel Optane DC Persistent Memory inside the Storage Cell
  • New Remote Direct Memory Access (RDMA) functionalities
  • Replacement of the XEN Hypervisor with KVM

InfiniBand Network replacement with an Ethernet network fabric

The characteristic 40Gbit/second InfiniBand network used for all private network communications among database nodes and storage cells has been replaced by a new 100Gbit/second RDMA over Converged Ethernet Fabric (RoCE) based on the Cisco Switch 9336c RoCE .

The new network not only increase 2.5x the throughput but also reduces the communication latancy.

The schema below highlight the network architecture change for all private communications

Intel Optane DC Persistent Memory inside the Storage Cell

Oracle has introduced 1.5TB of Intel Optane DC Persistent Memory as additional storage device inside all Exadata X8M Storage Cell, (no matter if equipped with HC and EF devices), and it is used as accelerator in front of the Flash Memory Cards. In term of speed this new type of ultra fast storage device is located between the DRAM and the Flash Memory, bringing to three the number of multi-tiered storage devices present inside the Storage Cell.

The Exadata unique software is than capable to extract the maximum performance from this HW configuration, automatically detecting and placing the hottest data on the Persistent Memory, reducing the I/O latency of the most critical tasks.

Below is described the list of Storage Cell’s devices ordered by speed.

New Remote Direct Memory Access (RDMA) functionalities

Until now the RDMA was used among database nodes for exchanging Exafusion messages or for Smart Fusion Block Transfer. Starting with Exadata X8M, the RDMA technology is also used to perform direct I/O access to the Persistent Memory of the Storage Cells, bypassing the network and I/O stack and eliminating expensive CPU interrupts and context switches. This optimization reduces the latency by 10x, from 200μs to less than 19μs.

The picture below highlight the “Database Node to Database Node” and the new “Database Node to Storage Cell” communication using RDMA functionalities.

Replacement of the XEN Hypervisor with KVM

Oracle virtualization technology is called Oracle Virtual Machine (OVM) and in a productive invironment it can be implemented with one of this two different products:

  • Xen
  • KVM

Starting with Exadata X8M-2 the virtualization technology in use is KVM instead of Xen. Oracle started replacing Xen with KVM few years ago, for example on the smaller engineered system ODA X7-2M & X7-2S, but for the Exadata took longer, and I think the root cause was the InfiniBand network. Infact KVM is not fully integrated with InfiniBand, and it does not support bridging.

Advertisements

Exadata Deployment with Elastic Configuration

Recently, for one of my customers, I had the chance to install a couples of Exadata X7-2 using the new Elastic Configuration. The major benefits of using Elastic Configuration consists in the possibility to acquire the Exadata Machine with almost any possible combination of Database Nodes and Storage Cells.

In the past we were used to standard Oracle pre-defined Exadata Machine configurations: Eighth Rack, Quarter Rack, Half Rack and Full Rack, which is still possible, but not flexible enough.

The pictures below highlight the differences between the two configurations:

Edadats_Classiv_vs_Elastic

source: Oracle Data Sheet Exadata Database Machine X7-2



Deployment Exadata Elactic Configuration

The elastic configuration process automates the initial IP address allocations to databasenodes and storage cells, regardless the ordered configuration.  The Exadata Machine is connected to the InfiniBand switches using a standard cabling methodology which allows to determinate the node’s location in the rack. This information is therefore used when the nodes are powered up for the first time in order to assign the initial default IPs.

[root@exatest-iba0 ~]# ibhosts
Ca : 0x579b0123796ba0 ports 2 "node10 elasticNode 192.168.10.17,192.168.10.18 ETH0"
Ca : 0x579b01237966e0 ports 2 "node8 elasticNode 192.168.10.15,192.168.10.16 ETH0"
Ca : 0x579b0123844ab0 ports 2 "node6 elasticNode 192.168.10.11,192.168.10.12 ETH0"
Ca : 0x579b0123845e50 ports 2 "node5 elasticNode 192.168.10.7,192.168.10.8 ETH0"
Ca : 0x579b0123845fe0 ports 2 "node4 elasticNode 192.168.10.40,172.16.2.40 ETH0"
Ca : 0x579b0123845ea0 ports 2 "node3 elasticNode 192.168.10.9,192.168.10.10 ETH0"
Ca : 0x579b0123812b90 ports 2 "node2 elasticNode 192.168.10.1,192.168.10.2 ETH0"
Ca : 0x579b0123812970 ports 2 "node1 elasticNode 192.168.10.3,192.168.10.4 ETH0"
[root@exatest-iba0 ~]#





Because the Virtualization option was required,  it has to be activated at this stage:

[root@node8 ~]# /opt/oracle.SupportTools/switch_to_ovm.sh
2019-03-07 01:05:22 -0800 [INFO] Switch to DOM0 system partition /dev/VGExaDb/LVDbSys3 (/dev/mapper/VGExaDb-LVDbSys3)
2019-03-07 01:05:22 -0800 [INFO] Active system device: /dev/mapper/VGExaDb-LVDbSys1
2019-03-07 01:05:22 -0800 [INFO] Active system device in boot area: /dev/mapper/VGExaDb-LVDbSys1
2019-03-07 01:05:23 -0800 [INFO] Set active system device to /dev/VGExaDb/LVDbSys3 in /boot/I_am_hd_boot
2019-03-07 01:05:23 -0800 [INFO] Creating /.elasticConfig on DOM0 boot partition /boot
2019-03-07 01:05:34 -0800 [INFO] Reboot has been initiated to switch to the DOM0 system partition
Connection to 192.168.1.8 closed by remote host.
Connection to 192.168.1.8 closed.
✘



After the switch to OVM command it is time to reclaim the space initially used by the Linux bare metal Logical Volumes:

[root@node8 ~]# /opt/oracle.SupportTools/reclaimdisks.sh -free -reclaim
Model is ORACLE SERVER X7-2
Number of LSI controllers: 1
Physical disks found: 4 (252:0 252:1 252:2 252:3)
Logical drives found: 1
Linux logical drive: 0
RAID Level for the Linux logical drive: 5
Physical disks in the Linux logical drive: 4 (252:0 252:1 252:2 252:3)
Dedicated Hot Spares for the Linux logical drive: 0
Global Hot Spares: 0
[INFO ] Check for DOM0 with inactive Linux system disk
[INFO ] Valid DOM0 with inactive Linux system disk is detected
[INFO ] Number of partitions on the system device /dev/sda: 3
[INFO ] Higher partition number on the system device /dev/sda: 3
[INFO ] Last sector on the system device /dev/sda: 3509760000
[INFO ] End sector of the last partition on the system device /dev/sda: 3509759966
[INFO ] Remove inactive system logical volume /dev/VGExaDb/LVDbSys1
[INFO ] Remove logical volume /dev/VGExaDb/LVDbOra1
[INFO ] Extend logical volume /dev/VGExaDb/LVDbExaVMImages
[INFO ] Resize ocfs2 on logical volume /dev/VGExaDb/LVDbExaVMImages
[INFO ] XEN boot version and rpm versions are in sync
[INFO ] XEN EFI files will not be updated
[INFO ] Force setup grub
[root@node8 ~]#



Check the success of the reclaim disks procedure:

[root@node8 ~]# /opt/oracle.SupportTools/reclaimdisks.sh -check
Model is ORACLE SERVER X7-2
Number of LSI controllers: 1
Physical disks found: 4 (252:0 252:1 252:2 252:3)
Logical drives found: 1
Linux logical drive: 0
RAID Level for the Linux logical drive: 5
Physical disks in the Linux logical drive: 4 (252:0 252:1 252:2 252:3)
Dedicated Hot Spares for the Linux logical drive: 0
Global Hot Spares: 0
Valid. Disks configuration: RAID5 from 4 disks with no global and dedicated hot spare disks.
Valid. Booted: DOM0. Layout: DOM0.
[root@node8 ~]#



Upload the Oracle Exadata Database Machine Deployment Assistant configuration files to the database server, together with all software images, and run the One command procedure.

List of all Steps

[root@exatestdbadm01 linux-x64]# ./install.sh -cf TVD-exatest.xml -l
Initializing

1. Validate Configuration File
2. Update Nodes for Eighth Rack
3. Create Virtual Machine
4. Create Users
5. Setup Cell Connectivity
6. Calibrate Cells
7. Create Cell Disks
8. Create Grid Disks
9. Install Cluster Software
10. Initialize Cluster Software
11. Install Database Software
12. Relink Database with RDS
13. Create ASM Diskgroups
14. Create Databases
15. Apply Security Fixes
16. Install Exachk
17. Create Installation Summary
18. Resecure Machine
[root@exatestdbadm01 linux-x64]#



Run Step One to validate the setup

This example includes the creation of three different Clusters.

[root@exatestdbadm01 linux-x64]# ./install.sh -cf TVD-exatest.xml -s 1
Initializing
Executing Validate Configuration File
Validating cluster: Cluster-EFU
Locating machines...
Verifying operating systems...
Validating cluster networks...
Validating network connectivity...
Validating private ips on virtual cluster
Validating NTP setup...
Validating physical disks on storage cells...
Validating users...
Validating cluster: Cluster-PR1
Locating machines...
Verifying operating systems...
Validating cluster networks...
Validating network connectivity...
Validating private ips on virtual cluster
Validating NTP setup...
Validating physical disks on storage cells...
Validating users...
Validating cluster: Cluster-VAL
Locating machines...
Verifying operating systems...
Validating cluster networks...
Validating network connectivity...
Validating private ips on virtual cluster
Validating NTP setup...
Validating physical disks on storage cells...
Validating users...
Validating platinum...
Validating switches...
Checking disk reclaim status...
Checking Disk Tests Status....
Completed validation...

SUCCESS: Ip address: 10.x8.xx.40 is configured correctly
SUCCESS: Ip address: 10.x9.xx.55 is configured correctly
SUCCESS: Ip address: 10.x8.xx.41 is configured correctly
SUCCESS: Ip address: 10.x9.xx.56 is configured correctly
SUCCESS: Ip address: 10.x8.xx.45 is configured correctly
SUCCESS: Ip address: 10.x8.xx.46 is configured correctly
SUCCESS: Ip address: 10.x8.xx.44 is configured correctly
SUCCESS: Ip address: 10.x8.xx.43 is configured correctly
SUCCESS: Ip address: 10.x8.xx.42 is configured correctly
SUCCESS: 10.x8.xx.40 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x9.xx.55 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x8.xx.41 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x9.xx.56 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x8.xx.45 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x8.xx.46 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x8.xx.44 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x8.xx.43 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x8.xx.42 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x8.xx.40 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x9.xx.55 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x8.xx.41 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x9.xx.56 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x8.xx.45 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x8.xx.46 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x8.xx.44 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x8.xx.43 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x8.xx.42 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x8.xx.40 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x9.xx.55 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x8.xx.41 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x9.xx.56 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x8.xx.45 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x8.xx.46 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x8.xx.44 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x8.xx.43 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x8.xx.42 configured correctly on exatestceladm03.my.domain.com
SUCCESS: Ip address: 10.x8.xx.47 is configured correctly
SUCCESS: Ip address: 10.x9.xx.57 is configured correctly
SUCCESS: Ip address: 10.x8.xx.48 is configured correctly
SUCCESS: Ip address: 10.x9.xx.58 is configured correctly
SUCCESS: Ip address: 10.x8.xx.52 is configured correctly
SUCCESS: Ip address: 10.x8.xx.51 is configured correctly
SUCCESS: Ip address: 10.x8.xx.53 is configured correctly
SUCCESS: Ip address: 10.x8.xx.50 is configured correctly
SUCCESS: Ip address: 10.x8.xx.49 is configured correctly
SUCCESS: 10.x8.xx.47 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x9.xx.57 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x8.xx.48 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x9.xx.58 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x8.xx.52 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x8.xx.51 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x8.xx.53 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x8.xx.50 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x8.xx.49 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x8.xx.47 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x9.xx.57 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x8.xx.48 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x9.xx.58 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x8.xx.52 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x8.xx.51 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x8.xx.53 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x8.xx.50 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x8.xx.49 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x8.xx.47 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x9.xx.57 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x8.xx.48 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x9.xx.58 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x8.xx.52 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x8.xx.51 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x8.xx.53 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x8.xx.50 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x8.xx.49 configured correctly on exatestceladm03.my.domain.com
SUCCESS: Ip address: 10.x8.xx.54 is configured correctly
SUCCESS: Ip address: 10.x9.xx.59 is configured correctly
SUCCESS: Ip address: 10.x8.xx.55 is configured correctly
SUCCESS: Ip address: 10.x9.xx.60 is configured correctly
SUCCESS: Ip address: 10.x8.xx.58 is configured correctly
SUCCESS: Ip address: 10.x8.xx.60 is configured correctly
SUCCESS: Ip address: 10.x8.xx.59 is configured correctly
SUCCESS: Ip address: 10.x8.xx.57 is configured correctly
SUCCESS: Ip address: 10.x8.xx.56 is configured correctly
SUCCESS: 10.x8.xx.54 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x9.xx.59 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x8.xx.55 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x9.xx.60 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x8.xx.58 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x8.xx.60 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x8.xx.59 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x8.xx.57 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x8.xx.56 configured correctly on exatestceladm01.my.domain.com
SUCCESS: 10.x8.xx.54 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x9.xx.59 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x8.xx.55 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x9.xx.60 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x8.xx.58 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x8.xx.60 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x8.xx.59 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x8.xx.57 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x8.xx.56 configured correctly on exatestceladm02.my.domain.com
SUCCESS: 10.x8.xx.54 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x9.xx.59 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x8.xx.55 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x9.xx.60 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x8.xx.58 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x8.xx.60 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x8.xx.59 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x8.xx.57 configured correctly on exatestceladm03.my.domain.com
SUCCESS: 10.x8.xx.56 configured correctly on exatestceladm03.my.domain.com
SUCCESS: Validated NTP server 10.x3.xx.xx0
SUCCESS: Validated NTP server 10.x3.xx.xx1
SUCCESS: Required file /EXAVMIMAGES/onecommand/linux-x64/WorkDir/p28514222_122118_Linux-x86-64.zip exists...
SUCCESS: Required file /EXAVMIMAGES/onecommand/linux-x64/WorkDir/p28762988_12201181016GIOCT2018RU_Linux-x86-64.zip exists...
SUCCESS: Required file /EXAVMIMAGES/onecommand/linux-x64/WorkDir/p28762989_12201181016DBOCT2018RU_Linux-x86-64.zip exists...
SUCCESS: Required file config/exachk.zip exists...
SUCCESS: Found Operating system LinuxPhysical and configuration file expects LinuxPhysical on machine exatestceladm03.my.domain.com, machine type: storage
SUCCESS: Found Operating system LinuxPhysical and configuration file expects LinuxPhysical on machine exatestceladm02.my.domain.com, machine type: storage
SUCCESS: Found Operating system LinuxPhysical and configuration file expects LinuxPhysical on machine exatestceladm01.my.domain.com, machine type: storage
SUCCESS: Expected machine exatestdbadm01.my.domain.com to have OS Type of Linux Dom0, and found OsType LinuxDom0
SUCCESS: Expected machine exatestdbadm02.my.domain.com to have OS Type of Linux Dom0, and found OsType LinuxDom0
SUCCESS: NTP servers on machine exatestceladm02.my.domain.com verified successfully
SUCCESS: NTP servers on machine exatestceladm01.my.domain.com verified successfully
SUCCESS: NTP servers on machine exatestceladm03.my.domain.com verified successfully
SUCCESS: NTP servers on machine exatestdbadm01.my.domain.com verified successfully
SUCCESS: NTP servers on machine exatestdbadm02.my.domain.com verified successfully
SUCCESS: Sufficient memory for all the guests on database node exatestdbadm02.my.domain.com
SUCCESS: Sufficient memory for all the guests on database node exatestdbadm01.my.domain.com
SUCCESS: Expected machine exatestdbadm02.my.domain.com to have OS Type of Linux Dom0, and found OsType LinuxDom0
SUCCESS: Found Operating system LinuxPhysical and configuration file expects LinuxPhysical on machine exatestceladm01.my.domain.com, machine type: storage
SUCCESS: Found Operating system LinuxPhysical and configuration file expects LinuxPhysical on machine exatestceladm02.my.domain.com, machine type: storage
SUCCESS: Expected machine exatestdbadm01.my.domain.com to have OS Type of Linux Dom0, and found OsType LinuxDom0
SUCCESS: Found Operating system LinuxPhysical and configuration file expects LinuxPhysical on machine exatestceladm03.my.domain.com, machine type: storage
SUCCESS: NTP servers on machine exatestceladm03.my.domain.com verified successfully
SUCCESS: NTP servers on machine exatestceladm01.my.domain.com verified successfully
SUCCESS: NTP servers on machine exatestceladm02.my.domain.com verified successfully
SUCCESS: NTP servers on machine exatestdbadm02.my.domain.com verified successfully
SUCCESS: NTP servers on machine exatestdbadm01.my.domain.com verified successfully
SUCCESS: Sufficient memory for all the guests on database node exatestdbadm02.my.domain.com
SUCCESS: Sufficient memory for all the guests on database node exatestdbadm01.my.domain.com
SUCCESS: Found Operating system LinuxPhysical and configuration file expects LinuxPhysical on machine exatestceladm03.my.domain.com, machine type: storage
SUCCESS: Found Operating system LinuxPhysical and configuration file expects LinuxPhysical on machine exatestceladm02.my.domain.com, machine type: storage
SUCCESS: Found Operating system LinuxPhysical and configuration file expects LinuxPhysical on machine exatestceladm01.my.domain.com, machine type: storage
SUCCESS: Expected machine exatestdbadm02.my.domain.com to have OS Type of Linux Dom0, and found OsType LinuxDom0
SUCCESS: Expected machine exatestdbadm01.my.domain.com to have OS Type of Linux Dom0, and found OsType LinuxDom0
SUCCESS: NTP servers on machine exatestceladm03.my.domain.com verified successfully
SUCCESS: NTP servers on machine exatestceladm02.my.domain.com verified successfully
SUCCESS: NTP servers on machine exatestceladm01.my.domain.com verified successfully
SUCCESS: NTP servers on machine exatestdbadm01.my.domain.com verified successfully
SUCCESS: NTP servers on machine exatestdbadm02.my.domain.com verified successfully
SUCCESS: Sufficient memory for all the guests on database node exatestdbadm02.my.domain.com
SUCCESS: Sufficient memory for all the guests on database node exatestdbadm01.my.domain.com
SUCCESS: Switch IP 10.x9.xx.51 resolves successfully to host exatest-iba0.my.domain.com on node exatestceladm03.my.domain.com
SUCCESS:
SUCCESS: Switch IP 10.x9.xx.51 resolves successfully to host exatest-iba0.my.domain.com on node exatestceladm02.my.domain.com
SUCCESS: Switch IP 10.x9.xx.52 resolves successfully to host exatest-ibb0.my.domain.com on node exatestceladm03.my.domain.com
SUCCESS:
SUCCESS:
SUCCESS:
SUCCESS: Switch IP 10.x9.xx.52 resolves successfully to host exatest-ibb0.my.domain.com on node exatestceladm02.my.domain.com
SUCCESS:
SUCCESS: Switch IP 10.x9.xx.51 resolves successfully to host exatest-iba0.my.domain.com on node exatestceladm01.my.domain.com
SUCCESS: Switch IP 10.x9.xx.52 resolves successfully to host exatest-ibb0.my.domain.com on node exatestceladm01.my.domain.com
SUCCESS:
SUCCESS: X7 compute node exatestdbadm01.my.domain.com has updated Broadcom firmware
SUCCESS: X7 compute node exatestdbadm02.my.domain.com has updated Broadcom firmware
SUCCESS: Disk Tests are not running/active on any of the Storage Servers.
SUCCESS: Cluster Version 12.2.0.1.181016 is compatible with OL7 on exatestdbadm01
SUCCESS: Cluster Version 12.2.0.1.181016 is compatible with OL7 on exatestdbadm02
SUCCESS: Cluster Version 12.2.0.1.181016 is compatible with OL7 on exatestdbadm01
SUCCESS: Cluster Version 12.2.0.1.181016 is compatible with OL7 on exatestdbadm02
SUCCESS: Cluster Version 12.2.0.1.181016 is compatible with OL7 on exatestdbadm01
SUCCESS: Cluster Version 12.2.0.1.181016 is compatible with OL7 on exatestdbadm02
SUCCESS: Disk size 10000GB on cell exatestceladm01.my.domain.com matches the value specified in the OEDA configuration file
SUCCESS: Disk size 10000GB on cell exatestceladm02.my.domain.com matches the value specified in the OEDA configuration file
SUCCESS: Disk size 10000GB on cell exatestceladm03.my.domain.com matches the value specified in the OEDA configuration file
SUCCESS: Disk size 10000GB on cell exatestceladm04.my.domain.com matches the value specified in the OEDA configuration file
SUCCESS: Disk size 10000GB on cell exatestceladm05.my.domain.com matches the value specified in the OEDA configuration file
SUCCESS: Disk size 10000GB on cell exatestceladm06.my.domain.com matches the value specified in the OEDA configuration file
Successfully completed execution of step Validate Configuration File [elapsed Time [Elapsed = 250301 mS [4.0 minutes] Thu Mar 07 12:35:31 CET 2019]]
[root@exatestdbadm01 linux-x64]#





Execution of all remaining steps

Than, because we felt confident, we decide to invoke all remaining steps together:

root@exatestdbadm01 linux-x64]# ./install.sh -cf TVD-exatest.xml -r 1-18
...
..



The final result is the Exadata Machine installed with six Oracle VMs, and three Grid Infrastructure clusters each one running a test RAC database.





Oracle VM Server 3.4.5 – Kernel Memory Leak



Oracle VM Server instability on version 3.4.5 due to a Oracle Unbreakable Enterprise Kernel (UEK)  bug.

The kernel version 4.1.12-124.14.5.el6uek.x86_64  has introduced a memory leak of the network module i40e



Here is reported the backtraces collected after the problem from the /var/log/messages:

Dec 12 07:06:30 efuovs02 kernel: [1508192.885203] ntpd invoked oom-killer: gfp_mask=0x200da, order=0, oom_score_adj=0
Dec 12 07:06:30 efuovs02 kernel: [1508192.885208] ntpd cpuset=/ mems_allowed=0
Dec 12 07:06:30 efuovs02 kernel: [1508192.885217] CPU: 3 PID: 4751 Comm: ntpd Not tainted 4.1.12-124.14.5.el6uek.x86_64 #2
Dec 12 07:06:30 efuovs02 kernel: [1508192.885221] Hardware name: HPE ProLiant DL360 Gen10/ProLiant DL360 Gen10, BIOS U32 02/14/2018
Dec 12 07:06:30 efuovs02 kernel: [1508192.885224]  0000000000000000 ffff8804484cf678 ffffffff816e4bdb ffff88044d44aa00
Dec 12 07:06:30 efuovs02 kernel: [1508192.885230]  0000000000000000 ffff8804484cf708 ffffffff816e32d1 01ff8804484cf688
Dec 12 07:06:30 efuovs02 kernel: [1508192.885235]  ffff8804484cf718 ffff8804484cf6c8 ffffffff811fc561 ffff8804484cf800
Dec 12 07:06:30 efuovs02 kernel: [1508192.885241] Call Trace:
Dec 12 07:06:30 efuovs02 kernel: [1508192.885251]  [<ffffffff816e4bdb>] dump_stack+0x63/0x81
Dec 12 07:06:30 efuovs02 kernel: [1508192.885256]  [<ffffffff816e32d1>] dump_header+0x7f/0x1f3
Dec 12 07:06:30 efuovs02 kernel: [1508192.885264]  [<ffffffff811fc561>] ? vmpressure+0x21/0x90
Dec 12 07:06:30 efuovs02 kernel: [1508192.885272]  [<ffffffff8118e53c>] oom_kill_process+0x1cc/0x3c0
Dec 12 07:06:30 efuovs02 kernel: [1508192.885283]  [<ffffffff8108de0e>] ? has_capability_noaudit+0x1e/0x30
Dec 12 07:06:31 efuovs02 kernel: [1508192.885288]  [<ffffffff8118eaab>] __out_of_memory+0x31b/0x530
Dec 12 07:06:31 efuovs02 kernel: [1508192.885294]  [<ffffffff8118ee5b>] out_of_memory+0x5b/0x80
Dec 12 07:06:31 efuovs02 kernel: [1508192.885300]  [<ffffffff81194d42>] __alloc_pages_nodemask+0x952/0xab0
Dec 12 07:06:31 efuovs02 kernel: [1508192.885307]  [<ffffffff811de28d>] alloc_pages_vma+0xbd/0x260
Dec 12 07:06:31 efuovs02 kernel: [1508192.885311]  [<ffffffff8118a59e>] ? find_get_entry+0x1e/0xc0
Dec 12 07:06:31 efuovs02 kernel: [1508192.885317]  [<ffffffff811ce6bd>] read_swap_cache_async+0xed/0x170
Dec 12 07:06:31 efuovs02 kernel: [1508192.885322]  [<ffffffff811ce82d>] swapin_readahead+0xed/0x190
Dec 12 07:06:31 efuovs02 kernel: [1508192.885328]  [<ffffffff811bbfe0>] handle_mm_fault+0x12d0/0x1770
Dec 12 07:06:31 efuovs02 kernel: [1508192.885335]  [<ffffffff8121d910>] ? poll_select_copy_remaining+0x130/0x130
Dec 12 07:06:31 efuovs02 kernel: [1508192.885340]  [<ffffffff8106d57f>] __do_page_fault+0x1af/0x480
Dec 12 07:06:31 efuovs02 kernel: [1508192.885346]  [<ffffffff816f2c1c>] ? page_fault+0xcc/0x120
Dec 12 07:06:31 efuovs02 kernel: [1508192.885350]  [<ffffffff8106d87f>] do_page_fault+0x2f/0x80
Dec 12 07:06:31 efuovs02 kernel: [1508192.885354]  [<ffffffff816f2be4>] ? page_fault+0x94/0x120
Dec 12 07:06:31 efuovs02 kernel: [1508192.885359]  [<ffffffff816f2bdd>] ? page_fault+0x8d/0x120
Dec 12 07:06:31 efuovs02 kernel: [1508192.885363]  [<ffffffff816f2bd6>] ? page_fault+0x86/0x120
Dec 12 07:06:31 efuovs02 kernel: [1508192.885367]  [<ffffffff816f2c5f>] page_fault+0x10f/0x120
Dec 12 07:06:31 efuovs02 kernel: [1508192.885375]  [<ffffffff813316c5>] ? copy_user_enhanced_fast_string+0x5/0x10
Dec 12 07:06:31 efuovs02 kernel: [1508192.885379]  [<ffffffff8121d7d1>] ? set_fd_set+0x21/0x30
Dec 12 07:06:31 efuovs02 kernel: [1508192.885384]  [<ffffffff8121e5aa>] core_sys_select+0x1fa/0x2f0
Dec 12 07:06:31 efuovs02 kernel: [1508192.885392]  [<ffffffff810f8fc3>] ? ntp_notify_cmos_timer+0x23/0x30
Dec 12 07:06:31 efuovs02 kernel: [1508192.885396]  [<ffffffff810f8a1d>] ? do_adjtimex+0xed/0x100
Dec 12 07:06:31 efuovs02 kernel: [1508192.885402]  [<ffffffff810ed3ac>] ? SYSC_adjtimex+0x4c/0x80
Dec 12 07:06:31 efuovs02 kernel: [1508192.885410]  [<ffffffff810209e9>] ? read_tsc+0x9/0x10
Dec 12 07:06:31 efuovs02 kernel: [1508192.885414]  [<ffffffff810f68cb>] ? ktime_get_ts64+0x4b/0x110
Dec 12 07:06:31 efuovs02 kernel: [1508192.885419]  [<ffffffff8121e74b>] SyS_select+0xab/0x100
Dec 12 07:06:31 efuovs02 kernel: [1508192.885424]  [<ffffffff816ed451>] ? system_call_after_swapgs+0xdb/0x18c
Dec 12 07:06:31 efuovs02 kernel: [1508192.885428]  [<ffffffff816ed51a>] system_call_fastpath+0x18/0xd4
Dec 12 07:06:31 efuovs02 kernel: [1508192.885457] Mem-Info:
Dec 12 07:06:31 efuovs02 kernel: [1508192.885469] active_anon:1452 inactive_anon:1426 isolated_anon:65
Dec 12 07:06:31 efuovs02 kernel: [1508192.885469]  active_file:4559 inactive_file:873 isolated_file:0
Dec 12 07:06:31 efuovs02 kernel: [1508192.885469]  unevictable:1547 dirty:20 writeback:31 unstable:0
Dec 12 07:06:31 efuovs02 kernel: [1508192.885469]  slab_reclaimable:6776 slab_unreclaimable:8649
Dec 12 07:06:31 efuovs02 kernel: [1508192.885469]  mapped:3007 shmem:0 pagetables:1705 bounce:0
Dec 12 07:06:31 efuovs02 kernel: [1508192.885469]  free:33536 free_pcp:918 free_cma:0
Dec 12 07:06:31 efuovs02 kernel: [1508192.885483] Node 0 DMA free:15740kB min:60kB low:72kB high:84kB active_anon:0kB inactive_anon:0kB active_file:0kB inactive_file:0kB unevictable:0kB isolated(anon):0kB isolated(file):0kB present:15988kB managed:15900kB mlocked:0kB dirty:0kB writeback:0kB mapped:0kB shmem:0kB slab_reclaimable:0kB slab_unreclaimable:0kB kernel_stack:0kB pagetables:0kB unstable:0kB bounce:0kB free_pcp:0kB local_pcp:0kB free_cma:0kB writeback_tmp:0kB pages_scanned:0 all_unreclaimable? yes
Dec 12 07:06:31 efuovs02 kernel: [1508192.885499] lowmem_reserve[]: 0 2661 15921 15921
Dec 12 07:06:31 efuovs02 kernel: [1508192.885508] Node 0 DMA32 free:64064kB min:11076kB low:13844kB high:16612kB active_anon:5912kB inactive_anon:5876kB active_file:112kB inactive_file:52kB unevictable:836kB isolated(anon):256kB isolated(file):0kB present:2781336kB managed:2751088kB mlocked:836kB dirty:0kB writeback:0kB mapped:668kB shmem:0kB slab_reclaimable:4792kB slab_unreclaimable:6452kB kernel_stack:912kB pagetables:1692kB unstable:0kB bounce:0kB free_pcp:1156kB local_pcp:248kB free_cma:0kB writeback_tmp:0kB pages_scanned:619296 all_unreclaimable? yes
Dec 12 07:06:31 efuovs02 kernel: [1508192.885524] lowmem_reserve[]: 0 0 13260 13260
Dec 12 07:06:31 efuovs02 kernel: [1508192.885532] Node 0 Normal free:54340kB min:54392kB low:67988kB high:81584kB active_anon:0kB inactive_anon:0kB active_file:18124kB inactive_file:3440kB unevictable:5352kB isolated(anon):4kB isolated(file):0kB present:13979888kB managed:13534768kB mlocked:5352kB dirty:80kB writeback:124kB mapped:11360kB shmem:0kB slab_reclaimable:22312kB slab_unreclaimable:28144kB kernel_stack:2880kB pagetables:5128kB unstable:0kB bounce:0kB free_pcp:2516kB local_pcp:572kB free_cma:0kB writeback_tmp:0kB pages_scanned:129384 all_unreclaimable? yes
Dec 12 07:06:31 efuovs02 kernel: [1508192.885546] lowmem_reserve[]: 0 0 0 0
Dec 12 07:06:31 efuovs02 kernel: [1508192.885551] Node 0 DMA: 1*4kB (U) 1*8kB (U) 1*16kB (U) 1*32kB (U) 1*64kB (U) 0*128kB 1*256kB (U) 0*512kB 1*1024kB (U) 1*2048kB (R) 3*4096kB (M) = 15740kB
Dec 12 07:06:31 efuovs02 kernel: [1508192.885573] Node 0 DMA32: 143*4kB (UE) 111*8kB (UEM) 209*16kB (UE) 140*32kB (UE) 94*64kB (UEM) 57*128kB (UEM) 28*256kB (UEM) 7*512kB (UEM) 4*1024kB (EM) 9*2048kB (MR) 2*4096kB (MR) = 64068kB
Dec 12 07:06:31 efuovs02 kernel: [1508192.885596] Node 0 Normal: 8736*4kB (UEM) 1360*8kB (UEM) 208*16kB (UEM) 32*32kB (UE) 2*64kB (UE) 0*128kB 0*256kB 0*512kB 0*1024kB 0*2048kB 1*4096kB (R) = 54400kB
Dec 12 07:06:31 efuovs02 kernel: [1508192.885615] 8002 total pagecache pages
Dec 12 07:06:31 efuovs02 kernel: [1508192.885618] 1494 pages in swap cache
Dec 12 07:06:31 efuovs02 kernel: [1508192.885621] Swap cache stats: add 3717250313, delete 3717248819, find 2895172777/5168362256
Dec 12 07:06:31 efuovs02 kernel: [1508192.885624] Free swap  = 4129656kB
Dec 12 07:06:31 efuovs02 kernel: [1508192.885626] Total swap = 4194300kB
Dec 12 07:06:31 efuovs02 kernel: [1508192.885628] 4194303 pages RAM
Dec 12 07:06:31 efuovs02 kernel: [1508192.885630] 0 pages HighMem/MovableOnly
Dec 12 07:06:31 efuovs02 kernel: [1508192.885632] 118864 pages reserved
Dec 12 07:06:31 efuovs02 kernel: [1508192.885634] 0 pages cma reserved
Dec 12 07:06:31 efuovs02 kernel: [1508192.885636] 0 pages hwpoisoned
Dec 12 07:06:31 efuovs02 kernel: [1508192.885638] [ pid ]   uid  tgid total_vm      rss nr_ptes nr_pmds swapents oom_score_adj name
Dec 12 07:06:31 efuovs02 kernel: [1508192.885650] [  983]     0   983     2677      266      11       3      111         -1000 udevd
Dec 12 07:06:31 efuovs02 kernel: [1508192.885657] [ 3783]     0  3783   125771     1414      48       5        0         -1000 multipathd
Dec 12 07:06:31 efuovs02 kernel: [1508192.885662] [ 4334]     0  4334     6944      399      15       3      108         -1000 auditd
Dec 12 07:06:31 efuovs02 kernel: [1508192.885667] [ 4368]     0  4368    61281      438      23       3      377             0 rsyslogd
Dec 12 07:06:31 efuovs02 kernel: [1508192.885671] [ 4383]     0  4383     2832      352      11       3      164             0 irqbalance
Dec 12 07:06:31 efuovs02 kernel: [1508192.885675] [ 4412]    32  4412     4760      397      16       3       74             0 rpcbind
Dec 12 07:06:31 efuovs02 kernel: [1508192.885680] [ 4436]    29  4436     5853      354      17       3      112             0 rpc.statd
Dec 12 07:06:31 efuovs02 kernel: [1508192.885684] [ 4481]     0  4481     5790        0      15       3       50             0 rpc.idmapd
Dec 12 07:06:31 efuovs02 kernel: [1508192.885689] [ 4522]     0  4522     2106      268      12       5       28             0 fcoemon
Dec 12 07:06:31 efuovs02 kernel: [1508192.885694] [ 4537]    81  4537     5373        0      15       3       62             0 dbus-daemon
Dec 12 07:06:31 efuovs02 kernel: [1508192.885698] [ 4612]     0  4612     1030      310       9       5       41             0 o2hbmonitor
Dec 12 07:06:31 efuovs02 kernel: [1508192.885702] [ 4632]     0  4632    47286      410      51       3      221             0 cupsd
Dec 12 07:06:31 efuovs02 kernel: [1508192.885706] [ 4692]     0  4692     1039      323       9       5       30             0 acpid
Dec 12 07:06:31 efuovs02 kernel: [1508192.885711] [ 4718]     0  4718     1580      211       8       5       27             0 mcelog
Dec 12 07:06:31 efuovs02 kernel: [1508192.885715] [ 4738]     0  4738    16579      304      34       3      185         -1000 sshd
Dec 12 07:06:32 efuovs02 kernel: [1508192.885720] [ 4751]    38  4751     6644      567      18       3      162             0 ntpd
Dec 12 07:06:32 efuovs02 kernel: [1508192.885724] [ 4796]     0  4796     3235      331      15       6      143             0 xenstored
Dec 12 07:06:32 efuovs02 kernel: [1508192.885729] [ 4803]     0  4803    21126      307      21       6       69             0 xenconsoled
Dec 12 07:06:32 efuovs02 kernel: [1508192.885733] [ 4807]     0  4807    53362      393      65       3      525             0 qemu-system-i38
Dec 12 07:06:32 efuovs02 kernel: [1508192.885737] [ 4910]     0  4910    20252      478      45       3      239             0 master
Dec 12 07:06:32 efuovs02 kernel: [1508192.885742] [ 4922]    89  4922    20315      486      46       3      238             0 qmgr
Dec 12 07:06:32 efuovs02 kernel: [1508192.885746] [ 4930]     0  4930    29223      395      16       3      171             0 crond
Dec 12 07:06:32 efuovs02 kernel: [1508192.885750] [ 5036]     0  5036     5291      283      15       3       67             0 atd
Dec 12 07:06:32 efuovs02 kernel: [1508192.885755] [ 5345]     0  5345    38468      249      14       5       30             0 osmdaemon
Dec 12 07:06:32 efuovs02 kernel: [1508192.885759] [ 5366]     0  5366    85597      650      61       7     1514             0 python
Dec 12 07:06:32 efuovs02 kernel: [1508192.885764] [ 5378]     0  5378    24079      467      27       6      113             0 ovmport
Dec 12 07:06:32 efuovs02 kernel: [1508192.885768] [ 5390]     0  5390    60521      410      65       6      920             0 ovmwatch
Dec 12 07:06:32 efuovs02 kernel: [1508192.885772] [ 5405]     0  5405   208969      656      87       7     1558             0 python
Dec 12 07:06:32 efuovs02 kernel: [1508192.885777] [ 5772]     0  5772   177327     1015      89       6     1775             0 python
Dec 12 07:06:32 efuovs02 kernel: [1508192.885782] [ 5789]     0  5789    49154      741      71       7     1366             0 python
Dec 12 07:06:32 efuovs02 kernel: [1508192.885786] [ 5831]     0  5831    82559      555      70       6     1491             0 devmon
Dec 12 07:06:32 efuovs02 kernel: [1508192.885790] [ 5901]     0  5901     1031      292       9       5       18             0 mingetty
Dec 12 07:06:32 efuovs02 kernel: [1508192.885794] [ 5903]     0  5903     1031      292       8       5       19             0 mingetty
Dec 12 07:06:32 efuovs02 kernel: [1508192.885798] [ 5905]     0  5905     1031      292       9       5       19             0 mingetty
Dec 12 07:06:32 efuovs02 kernel: [1508192.885802] [ 5907]     0  5907     1031      292       9       5       19             0 mingetty
Dec 12 07:06:32 efuovs02 kernel: [1508192.885806] [ 5909]     0  5909     1031      292       9       5       19             0 mingetty
Dec 12 07:06:32 efuovs02 kernel: [1508192.885812] [26455]     0 26455    11091      458      44       5      108             0 socat
Dec 12 07:06:32 efuovs02 kernel: [1508192.885816] [27087]     0 27087    11091      458      45       5      108             0 socat
Dec 12 07:06:32 efuovs02 kernel: [1508192.885820] [27845]     0 27845    11091      458      44       5      109             0 socat
Dec 12 07:06:32 efuovs02 kernel: [1508192.885825] [27996]     0 27996    11091      458      44       5      107             0 socat
Dec 12 07:06:32 efuovs02 kernel: [1508192.885829] [14189]     0 14189    11091      458      44       5      109             0 socat
Dec 12 07:06:32 efuovs02 kernel: [1508192.885833] [16371]     0 16371    11091      458      44       5      109             0 socat
Dec 12 07:06:32 efuovs02 kernel: [1508192.885838] [14238]     0 14238     2676      256      11       3      129         -1000 udevd
Dec 12 07:06:32 efuovs02 kernel: [1508192.885842] [14374]     0 14374     2676      240      11       3      119         -1000 udevd
Dec 12 07:06:32 efuovs02 kernel: [1508192.885846] [15869]     0 15869    22957      931      62       6     1730             0 python
Dec 12 07:06:32 efuovs02 kernel: [1508192.885851] [16935]     0 16935    28695     2029      16       5       64             0 OSWatcher
Dec 12 07:06:32 efuovs02 kernel: [1508192.885855] [ 5867]    89  5867    20272     1250      45       3      229             0 pickup
Dec 12 07:06:32 efuovs02 kernel: [1508192.885860] [ 8948]     0  8948    27070      682      17       5       71             0 vmsub
Dec 12 07:06:32 efuovs02 kernel: [1508192.885864] [ 8951]     0  8951    27070      675      17       5       77             0 mpsub
Dec 12 07:06:32 efuovs02 kernel: [1508192.885868] [ 8953]     0  8953     1581      328      11       5       42             0 vmstat
Dec 12 07:06:32 efuovs02 kernel: [1508192.885872] [ 8958]     0  8958    27070      659      17       6       41             0 iosub
Dec 12 07:06:32 efuovs02 kernel: [1508192.885876] [ 8959]     0  8959    25258      441      13       5       46             0 mpstat
Dec 12 07:06:32 efuovs02 kernel: [1508192.885880] [ 8966]     0  8966    25261      420      11       5       19             0 iostat
Dec 12 07:06:32 efuovs02 kernel: [1508192.885884] [ 8971]     0  8971    27070      679      17       5        0             0 xtop
Dec 12 07:06:32 efuovs02 kernel: [1508192.885888] [ 8976]     0  8976    27070      695      17       5        0             0 psmemsub
Dec 12 07:06:32 efuovs02 kernel: [1508192.885892] [ 8977]     0  8977     3771      483      20       5        3             0 top
Dec 12 07:06:32 efuovs02 kernel: [1508192.885896] [ 8980]     0  8980    27070      680      17       5        0             0 oswsub
Dec 12 07:06:32 efuovs02 kernel: [1508192.885901] [ 8985]     0  8985    28695     1794      15       5      131             0 OSWatcher
Dec 12 07:06:32 efuovs02 kernel: [1508192.885905] [ 8986]     0  8986    27564      523      19       5        8             0 ps
Dec 12 07:06:32 efuovs02 kernel: [1508192.885909] [ 8987]     0  8987    27070       54      12       5        0             0 psmemsub
Dec 12 07:06:32 efuovs02 kernel: [1508192.885913] [ 8988]     0  8988    27070       52      11       5        0             0 oswsub
Dec 12 07:06:32 efuovs02 kernel: [1508192.885917] Out of memory: Kill process 5772 (python) score 0 or sacrifice child
Dec 12 07:06:32 efuovs02 kernel: [1508192.886216] Killed process 5772 (python) total-vm:709308kB, anon-rss:0kB, file-rss:4060kB





How to fix the OVS Kernel Memory Leak

Download the following kernel version which includes the memoy leak fix for the i40e module:  link to Oracle RPM repository

kernel-uek-4.1.12-124.21.1.el6uek.x86_64.rpm
kernel-uek-firmware-4.1.12-124.21.1.el6uek.noarch.rpm


[root@efuovs02 new_Kernel]# rpm -qp --changelog kernel-uek-4.1.12-124.21.1.el6uek.x86_64.rpm | grep -B 3 28228724
warning: kernel-uek-4.1.12-124.21.1.el6uek.x86_64.rpm: Header V3 RSA/SHA256 Signature, key ID ec551f03: NOKEY
* Tue Oct 30 2018 Brian Maly <brian.maly@oracle.com> [4.1.12-124.20.8.el6uek]
- scsi: lpfc: devloss timeout race condition caused null pointer reference (James Smart) [Orabug: 27994179]
- scsi: qla2xxx: Fix race condition between iocb timeout and initialisation (Ben Hutchings) [Orabug: 28013813]
- i40e: Add programming descriptors to cleaned_count (Alexander Duyck) [Orabug: 28228724]
- i40e: Fix memory leak related filter programming status (Alexander Duyck) [Orabug: 28228724]





Install the new OVS Kernel

Using the steps reported below, the new kernel has been installed on all OVS servers of the farm.

[root@efuovs02 new_Kernel]# rpm -ivh kernel*
warning: kernel-uek-4.1.12-124.21.1.el6uek.x86_64.rpm: Header V3 RSA/SHA256 Signature, key ID ec551f03: NOKEY
Preparing... ########################################### [100%]
1:kernel-uek-firmware ########################################### [ 50%]
2:kernel-uek ########################################### [100%]
Generating grub configuration file ...
Found linux image: /boot/vmlinuz-4.1.12-124.21.1.el6uek.x86_64
Found linux image: /boot/vmlinuz-4.1.12-124.14.5.el6uek.x86_64
Found initrd image: /boot/initramfs-4.1.12-124.14.5.el6uek.x86_64.img
done
Generating grub configuration file ...
Found linux image: /boot/vmlinuz-4.1.12-124.21.1.el6uek.x86_64
Found initrd image: /boot/initramfs-4.1.12-124.21.1.el6uek.x86_64.img
Found linux image: /boot/vmlinuz-4.1.12-124.14.5.el6uek.x86_64
Found initrd image: /boot/initramfs-4.1.12-124.14.5.el6uek.x86_64.img
done
[root@efuovs02 new_Kernel]#

....

[root@efuovs02 new_Kernel]# reboot

[root@efuovs02 ~]# uname -a
Linux efuovs02 4.1.12-124.21.1.el6uek.x86_64 #2 SMP Tue Nov 6 13:31:13 PST 2018 x86_64 x86_64 x86_64 GNU/Linux









The “Great” ODA overwhelming the Exadata

Introduction

This article try to explain the technical reasons of the Oracle Database Appliance success, a well-known appliance with whom Oracle targets small and medium businesses, or specific departments of big companies looking for privacy and isolation from the rest of the IT. Nowadays this small and relatively cheap appliance (around 65’000$ price list) has evolved a lot, the storage has reached an important capacity 128TB raw expansible to 256TB, and the two X5-2 servers are the same used on the database node of the Exadata machine. Many customers, while defining the new database architecture evaluate the pros and cons of acquiring an ODA compared to the smallest Exadata configuration (one eight of a Rack). If the customer is not looking for a system with extreme performance and horizontal scalability beyond the two X5-2 servers, the Oracle Database Appliance is frequently the retained option.

Some of the ODA major features are:

  • High Availability: no single point of failure on all hardware and software components.
  • Performance: each server is equipped with 2×18-core Intel Xeon and 256GB of RAM extensible up to 768GB, cluster communication over InfiniBand. The shared storage offers a multi-tiers configuration with HDDs at 7.2K rpm and two type of SSDs for frequently accessed data and for database redo logs.
  • Flexibility & Scalability: running RAC, RAC One node and Single Instance databases.
  • Virtualized configuration: designed for offering Solution in-a-box, with high available virtual machines.
  • Optimized licensing model: pay-as-you-grow model activating a crescendo number of CPU-cores on demand, with the Bare Metal configuration; or capping the resources combining Oracle VM with the Hard Partitioning setup.
  • Time-to-market: no-matter if the ODA has to be installed bare metal or virtualized, this is a standardized and automated process generally completed in one or two day of work.
  • Price: the ODA is very competitive when comparing the cost to an equivalent commodity architecture; which in addition, must be engineered, integrated and maintained by the customer.



At the time of the writing of this article, the latest hardware model is ODA X5-2 and 12.1.2.6.0 is the software version. This HW and SW combination offers unique features, few of them not even available on the Exadata machine, like the possibility to host databases and applications in one single box, or the possibility to rapidly and space efficiently clone an 11gR2 and 12c database using ACFS Snapshot.





ODA HW & SW Architecture

Oracle Database Appliance is composed by two X5-2 servers and a shared storage shelf, which optionally can be doubled. Each Server disposes of: two 18-core Intel Xeon E5-2699 v3; 256GB RAM (optionally upgradable to 768GB) and two 600GB 10k rpm internal disks in RAID 1 for OS and software binaries.

This appliance is equipped with redundant networking connectivity up to 10Gb, redundant SAS HBAs and Storage I/O modules, redundant InfiniBand interconnect for cluster communication enabling 40 Gb/second server-to-server communication.

The software components are all part of Oracle “Red Stack” with Oracle Linux 6 UEK or OVM 3, Grid Infrastructure 12c, Oracle RDBMS 12c & 11gR2 and Oracle Appliance Manager.





ODA Front view

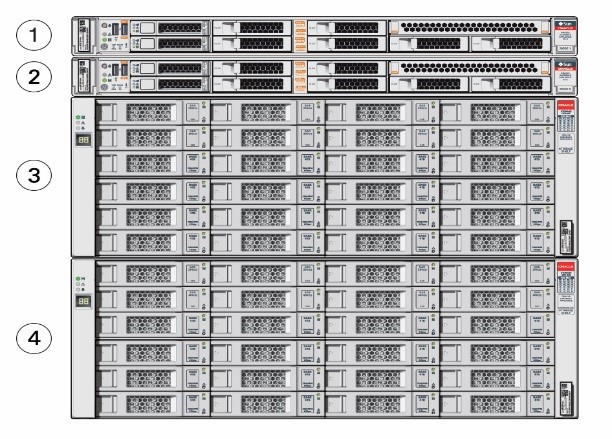

Components number 1 & 2 are the X5-2 Servers. Components 3 & 4 are the Storage and the optionally Storage extension.

ODA_Front



ODA Rear view

Highlight of the multiple redundant connections, including InfiniBand for Oracle Clusterware, ASM and RAC communications. No single point of HW or SW failure.

ODA_Back





Storage Organization

With 16x8TB SAS HDDs a total raw space of 128TB is available on each storage self (64TB in configuration ASM double-mirrored and 42.7TB with ASM triple-mirrored). To offer better I/O performance without exploding the price, Oracle has implemented the following SSD devices: 4x400GB ASM double-mirrored, for frequently accessed data, and 4x200GB ASM triple-mirrored, for database redo logs.

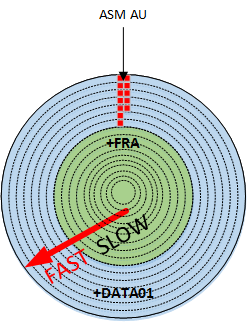

As shown on the picture aside, each rotating disk has two slices, the external, and more performant partition assigned to the +DATA ASM disk group, and the internal one allocated to +RECO ASM disk group.



ODA_Disk

This storage optimization allows the ODA to achieve competitive I/O performance. In a production-like environment, using the three type of disks, as per ODA Database template odb-24 (https://docs.oracle.com/cd/E22693_01/doc.12/e55580/sizing.htm), Trivadis has measured 12k I/O per second and a throughput of 2300 MB/s with an average latency of 10ms. As per Oracle documentation, the maximum number of I/O per second of the rotating disks, with a single storage shelf is 3300; but this value increases significantly relocating the hottest data files to +FLASH disk group created on SSD devices.



ACFS becomes the default database storage of ODA

Starting from the ODA software version 12.1.0.2, any fresh installation enforces ASM Cluster File System (ACFS) as lonely type of database storage support, restricting the supported database versions to 11.2.0.4 and greater. In case of ODA upgrade from previous release, all pre-existing databases are not automatically migrated to ACFS, but Oracle provides a tool called acfs_mig.pl for executing this mandatory step on all Non-CDB databases of version >= 11.2.0.4.

Oracle has decided to promote ACFS as default database storage on ODA environment for the following reasons:

  • ACFS provides almost equivalent performance than Oracle ASM disk groups.
  • Additional functionalities on industry standard POSIX file system.
  • Database snapshot copy of PDBs, and NON-CDB of version 11.2.0.4 or greater.
  • Advanced functionality for general-purpose files such as replication, tagging, encryption, security, and auditing.

Database created on ACFS follows the same Oracle Managed Files (OMF) standard used by ASM.

As in the past, the database provisioning requires the utilization of the command line interface oakcli and the selection of a database template, which defines several characteristics including the amount of space to allocate on each file system. Container and Non-Container databases can coexist on the same Oracle Database Appliance.

The ACFS file systems are created during the database provisioning process on top of the ASM disk groups +DATA, +RECO, +REDO, and optionally +FLASH. The file systems have two possible setups, depending on the database type Container or Non-Container.

  • Container database: for each CDB the ODA database-provisioning job creates dedicated ACFS file systems with the following characteristics:
Disk Characteristics ASM Disk group ACFS Mount Point
SAS Disk external partition +DATA /u02/app/oracle/oradata/datc<db_unique_name>
SAS Disk internal partition +RECO /u01/app/oracle/fast_recovery_area/rcoc<db_unique_name>
SSD Triple-mirrored +REDO /u01/app/oracle/oradata/rdoc<db_unique_name>
SSD Double-mirrored +FLASH (*) /u02/app/oracle/oradata/flashdata



  • Non-Container database: in case of Non-CDB the ODA database-provisioning job creates or resizes the following shared ACFS file systems:
Disk Characteristics ASM Disk group ACFS Mount Point
SAS Disk external partition +DATA /u02/app/oracle/oradata/datastore
SAS Disk internal partition +RECO /u01/app/oracle/fast_recovery_area/datastore
SSD Triple-mirrored +REDO /u01/app/oracle/oradata/datastore
SSD Double-mirrored +FLASH (*) /u02/app/oracle/oradata/flashdata

(*) Optionally used by the databases as Smart Flash Cache (extension of the SGA buffer cache), or allocated to store the hottest data files leveraging the I/O performance of the SSD disks.



Oracle Database Appliance Bare Metal

The bare metal configuration has been available since version one of the appliance, and nowadays it remains the default option proposed by Oracle, which pre-install the OS Linux on any new system. Very simple and intuitive to install thanks to the pre-built bundle software, which automates most of the steps. At the end of the installation, the architecture is very similar to any other two node RAC setup based on commodity hardware; but even from an operation point of view there are great advantages, because the Oracle Appliance Manager framework simplifies and accelerates the execution of almost any system and database administrator task.

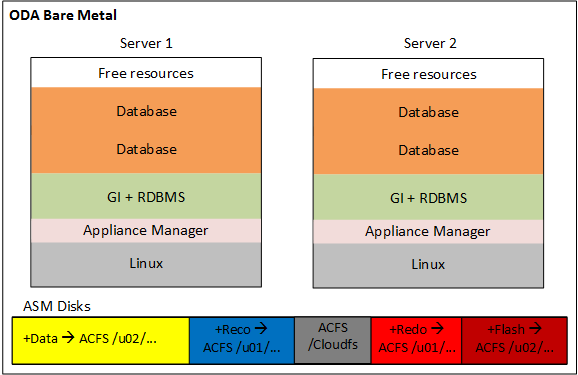

Here below is depicted the ODA architecture when the bare metal configuration is in use:

ODA_Bare_Metal



Oracle Database Appliance Virtualized

When the ODA is deployed with the virtualization, both servers run Oracle VM Server, also called Dom0. Each Dom0 hosts in a local dedicated repository the ODA Base (or Dom Base), a privileged virtual machine where it is installed the Appliance Manager, Grid Infrastructure and RDBMS binaries. The ODA Base takes advantage of the Xen PCI Pass-through technology to provide direct access to the ODA shared disks presented and managed by ASM. This configuration reduces the VM flexibility; in fact, no VM migration is allowed for the two ODA Base, but it guarantees almost no I/O penalty in term of performance. With the Dom Base setup, the basic installation is completed and it is possible to start provisioning databases using Oracle Appliance Manager.

At the same time, the administrator can create new-shared repositories hosted on ACFS and NFS exported to the hypervisor for hosting the application virtual machines. Those application virtual machines are also identified with the name of Domain U.  The Domain U and the templates can be stored on a local or shared Oracle VM Server repository, but to enable the functionality to migrate between the two Oracle VM Servers a shared repository on the ACFS file system should be used.

Even when the virtualization is in use, Oracle Appliance Manager is the only framework for system and database administration tasks like repository creation, import of template, deployment of virtual machine, network configuration, database provisioning and so on, relieving the administrator from all complexity.

The implementation of the Solution-in-a-box guarantees the maximum Return on Investment of the ODA; in fact, while restricting the virtual CPUs to license on the Dom Base it allows relocating spare resources to the application virtual machines as showed on the picture below.

ODA_Virtualized





ODA compared to Exadata Machine and Commodity Hardware

As described on the previous sections, Oracle Database Appliance offers unique features such as pay-as-you-grow, solution-in-a-box and so on, which can heavily influence the decision for a new database architecture. The aim of the table below is to list the main architecture characteristics to evaluate while defining a new database infrastructure, comparing the result between Oracle Database Appliance, Exadata Machine and a Commodity Architecture based on Intel Linux engineered to run RAC databases.

Table_Architectures

As shown by the different scores of the three architectures, each solution comes with points of strength and weakness; about the Oracle Database Appliance, it is evident that due to its characteristics, the smallest Oracle Engineered System remains a great option for small, medium database environments.



Conclusion

I hope this article keep the initial promise to explain the technical reasons of the Oracle Database Appliance success, and it has highlighted the great work done by Oracle, engineering this solution on the edge of the technology keeping the price under control.

One last summary of what in my opinion are the major benefits offered by the ODA:

  • Time-to-market: Thanks to automated processes and pre-build software images, the deployment phase is extremely rapid.
  • Simplicity: The use of standard software components, combined to the appliance orchestrator Oracle Appliance Manager makes the ODA very simple to operate.
  • Standardization & Automation: The Appliance Manager encapsulates and automatizes all repeatable and error-prone tasks like provisioning, decommissioning, patching and so on.
  • Vendor certified platform: Oracle validates and certifies the compatibility among all HW & SW components.
  • Evolution: Over the time, the ODA benefits of specific bug fixing and software evolution (introduced by Oracle though the quarterly patch sets); keeping the system on the edge for longer time when compared to a commodity architecture.

Patching ODA X5-2 Virtualized to version 12.1.2.6

Here is described the procedure to upgrade the ODA to the Bundle Patch 12.1.2.6.0.

This Bundle contains a BIG change because it replaces Oracle Enterprise Linux 5.11 with the version 6.7.

One critical requirement: this patch can only be installed on top of 12.1.2.5.0, to check the exisitng ODA version run:

# /opt/oracle/oak/bin/oakcli show version
Version
12.1.2.5.0

The patch can be downloaded from MOS selecting the following note: 22328442 ORACLE DATABASE APPLIANCE PATCH BUNDLE 12.1.2.6.0 (Patch)



And now let’s start with the installation:

  • Upload the patch on both ODA_Base (Dom1)  on /tmp
  • Remove any Extra RPM installed by the user on the ODA_Base
  • Unpack both ZIP files of the patch on both ODA_Base using the following oakcli command:
[root@oda_base01 / ] # cd /tmp/Patch_12.1.2.6.0
[root@oda_base01 patch]# oakcli unpack -package /tmp/patch/p22328442_121260_Linux-x86-64_1of2.zip
Unpacking takes a while, pls wait....
Successfully unpacked the files to repository.
[root@oda_base01 patch]#
[root@oda_base01 patch]#
[root@oda_base01 patch]# oakcli unpack -package /tmp/patch/p22328442_121260_Linux-x86-64_2of2.zip
Unpacking takes a while, pls wait....
Successfully unpacked the files to repository.
[root@oda_base01 patch]#


Verify the patch compatibility on both ODA_Base with the following check:

[root@oda_base01 patch]# oakcli update -patch 12.1.2.6.0 -verify

INFO: 2016-03-31 17:07:29: Reading the metadata file now...
 Component Name Installed Version Proposed Patch Version
 --------------- ------------------ -----------------
 Controller_INT     4.230.40-3739       Up-to-date
 Controller_EXT     06.00.02.00         Up-to-date
 Expander           0018                Up-to-date
 SSD_SHARED {
 [ c1d20,c1d21,c1d22, A29A              Up-to-date
 c1d23 ]
 [ c1d16,c1d17,c1d18, A29A              Up-to-date
 c1d19 ]
 }
 HDD_LOCAL            A720              Up-to-date
 HDD_SHARED           P554              Up-to-date
 ILOM             3.2.4.42 r99377     3.2.4.52 r101649
 BIOS               30040200              30050100
 IPMI               1.8.12.0              1.8.12.4
 HMP                2.3.2.4.1             2.3.4.0.1
 OAK               12.1.2.5.0            12.1.2.6.0
 OL                    5.11                  6.7
 OVM                  3.2.9              Up-to-date
 GI_HOME           12.1.0.2.5(21359755, 12.1.0.2.160119(2194
                              21359758) 8354,21948344)
 DB_HOME {
 [ OraDb11204_home1 ] 11.2.0.4.8(21352635, 11.2.0.4.160119(2194
 21352649) 8347,21948348)
 [ OraDb12102_home2,O 12.1.0.2.5(21359755, 12.1.0.2.160119(2194
 raDb12102_home1 ] 21359758) 8354,21948344)
 }
[root@oda_base01 patch]#

Validate the Upgrade to OEL6 checking:

  • The minimum required version
  • The space requirement
  • The list of valid ol5 rpms.
[root@oda_base01 patch]# oakcli validate -c ol6upgrade -prechecks
INFO: Validating the OL6 upgrade -prechecks
INFO: 2016-04-09 17:11:41: Checking for minimum compatible version
SUCCESS: 2016-04-09 17:11:41: Minimum compatible version check passed

INFO: 2016-04-09 17:11:41: Checking available free space on /u01
INFO: 2016-04-09 17:11:41: Free space on /u01 is 39734588 1K-blocks
SUCCESS: 2016-04-09 17:11:41: Check for available free space passed

INFO: 2016-04-09 17:11:42: Checking for additional RPMs
SUCCESS: 2016-04-09 17:11:42: Check for additional RPMs passed

INFO: 2016-04-09 17:11:42: Checking for expected RPMs installed
INFO: 2016-04-09 17:11:42: Please take backup of ODA_BASE. Ensure ODA_BASE, Share Repos and all the VMs are shutdown cleanly before taking backup.
INFO: 2016-04-09 17:11:42: You may use eg tar -cvzf oakDom1.<node>.tar.gz /OVS/Repositories/odabaseRepo/VirtualMachines/oakDom1.
SUCCESS: 2016-04-09 17:11:42: All the expected ol5 RPMs are installed
SUCCESS: Node is ready for upgrade
[root@oda_base01 patch]#

Apply the patch to the first node using the flag -local

[root@oda_base01 patch]# /opt/oracle/oak/bin/oakcli update -patch 12.1.2.6.0 --infra -local
INFO: Local patch is running on the Node <0>
INFO: ***************************************************
INFO: ** Please do not patch both nodes simultaneously **
INFO: ***************************************************
INFO: DB, ASM, Clusterware may be stopped during the patch if required
INFO: Local Node may get rebooted automatically during the patch if necessary
Do you want to continue: [Y/N]?: Y
INFO: User has confirmed for the reboot
INFO: 2016-04-09 17:14:22: Checking for minimum compatible version
SUCCESS: 2016-04-09 17:14:22: Minimum compatible version check passed

INFO: 2016-04-09 17:14:22: Checking available free space on /u01
INFO: 2016-04-09 17:14:22: Free space on /u01 is 39733684 1K-blocks
SUCCESS: 2016-04-09 17:14:22: Check for available free space passed

INFO: 2016-04-09 17:14:22: Checking for additional RPMs
SUCCESS: 2016-04-09 17:14:22: Check for additional RPMs passed

INFO: 2016-04-09 17:14:22: Checking for expected RPMs installed
INFO: 2016-04-09 17:14:22: Please take backup of ODA_BASE. Ensure ODA_BASE, Share Repos and all the VMs are shutdown cleanly before taking backup.
INFO: 2016-04-09 17:14:22: You may use eg tar -cvzf oakDom1.<node>.tar.gz /OVS/Repositories/odabaseRepo/VirtualMachines/oakDom1.
SUCCESS: 2016-04-09 17:14:22: All the expected ol5 RPMs are installed
INFO: All the VMs except the ODABASE will be shutdown forcefully if needed
Do you want to continue : [Y/N]? : Y
INFO: Running pre-install scripts
INFO: Running prepatching on local node
INFO: Completed pre-install scripts
INFO: local patching code START
INFO: Stopping local VMs, repos and oakd...
INFO: Shutdown of local VM, Repo and OAKD on node <0>.
INFO: Stopping OAKD on the local node.
INFO: Stopped Oakd on local node
INFO: Waiting for processes to sync up...
INFO: Oakd running on remote node
INFO: Stopping local VMs...
INFO: Stopping local shared repos...
INFO: Patching Dom0 components

INFO: Patching dom0 components on Local Node... <12.1.2.6.0>
INFO: 2016-04-09 17:27:02: Attempting to patch the HMP on Dom0...
SUCCESS: 2016-04-09 17:27:08: Successfully updated the device HMP to the version 2.3.4.0.1 on Dom0
INFO: 2016-04-09 17:27:08: Attempting to patch the IPMI on Dom0...
INFO: 2016-04-09 17:27:08: Successfully updated the IPMI on Dom0
INFO: 2016-04-09 17:27:08: Attempting to patch OS on Dom0...
INFO: 2016-04-09 17:27:18: Clusterware is running on local node
INFO: 2016-04-09 17:27:18: Attempting to stop clusterware and its resources locally
SUCCESS: 2016-04-09 17:29:12: Successfully stopped the clusterware on local node

SUCCESS: 2016-04-09 17:31:36: Successfully updated the device OVM to 3.2.9

INFO: Patching ODABASE components

INFO: Patching Infrastructure on the Local Node...

INFO: 2016-04-09 17:31:38: ------------------Patching OS-------------------------
INFO: 2016-04-09 17:31:38: OSPatching : Patching will start from step 0
INFO: 2016-04-09 17:31:38: OSPatching : Performing the step 0
INFO: 2016-04-09 17:31:39: OSPatching : step 0 completed
==================================================================================
INFO: 2016-04-09 17:31:39: OSPatching : Performing the step 1
INFO: 2016-04-09 17:31:39: OSPatching : step 1 completed
==================================================================================
INFO: 2016-04-09 17:31:39: OSPatching : Performing the step 2
INFO: 2016-04-09 17:31:42: OSPatching : step 2 completed.
==================================================================================
INFO: 2016-04-09 17:31:42: OSPatching : Performing the step 3
INFO: 2016-04-09 17:31:51: OSPatching : step 3 completed
==================================================================================
INFO: 2016-04-09 17:31:51: OSPatching : Performing the step 4
INFO: 2016-04-09 17:31:51: OSPatching : step 4 completed.
==================================================================================
INFO: 2016-04-09 17:31:51: OSPatching : Performing the step 5
INFO: 2016-04-09 17:31:52: OSPatching : step 5 completed
==================================================================================
INFO: 2016-04-09 17:31:52: OSPatching : Performing the step 6
INFO: 2016-04-09 17:31:52: OSPatching : Installing OL6 RPMs. Please wait...
INFO: 2016-04-09 17:35:05: OSPatching : step 6 completed
==================================================================================
INFO: 2016-04-09 17:35:05: OSPatching : Performing the step 7
INFO: 2016-04-09 17:37:36: OSPatching : step 7 completed
==================================================================================
INFO: 2016-04-09 17:37:36: OSPatching : Performing the step 8
INFO: 2016-04-09 17:37:37: OSPatching : step 8 completed
==================================================================================
INFO: 2016-04-09 17:37:37: OSPatching : Performing the step 9
INFO: 2016-04-09 17:38:14: OSPatching : step 9 completed
==================================================================================
INFO: 2016-04-09 17:38:14: OSPatching : Performing the step 10
INFO: 2016-04-09 17:38:50: OSPatching : step 10 completed
==================================================================================
INFO: 2016-04-09 17:38:50: OSPatching : Performing the step 11
INFO: 2016-04-09 17:38:50: OSPatching : step 11 completed
==================================================================================
INFO: 2016-04-09 17:38:50: OSPatching : Performing the step 12
INFO: 2016-04-09 17:38:50: Checking for expected RPMs installed
SUCCESS: 2016-04-09 17:38:51: All the expected ol6 RPMs are installed
INFO: 2016-04-09 17:38:51: OSPatching : step 12 completed
==================================================================================
SUCCESS: 2016-04-09 17:38:51: Successfully upgraded the OS

INFO: 2016-04-09 17:38:52: ----------------------Patching IPMI---------------------
INFO: 2016-04-09 17:38:52: IPMI is already upgraded or running with the latest version

INFO: 2016-04-09 17:38:52: ------------------Patching HMP-------------------------
INFO: 2016-04-09 17:38:53: HMP is already Up-to-date
INFO: 2016-04-09 17:38:53: /usr/lib64/sun-ssm already exists.

INFO: 2016-04-09 17:38:53: ----------------------Patching OAK---------------------
SUCCESS: 2016-04-09 17:39:27: Successfully upgraded OAK

INFO: 2016-04-09 17:39:31: ----------------------Patching JDK---------------------
SUCCESS: 2016-04-09 17:39:36: Successfully upgraded JDK

INFO: local patching code END

INFO: patching summary on local node
SUCCESS: 2016-04-09 17:39:39: Successfully upgraded the HMP on Dom0
SUCCESS: 2016-04-09 17:39:39: Successfully updated the device OVM
SUCCESS: 2016-04-09 17:39:39: Successfully upgraded the OS
INFO: 2016-04-09 17:39:39: IPMI is already upgraded
INFO: 2016-04-09 17:39:39: HMP is already updated
SUCCESS: 2016-04-09 17:39:39: Successfully updated the OAK
SUCCESS: 2016-04-09 17:39:39: Successfully updated the JDK

INFO: Running post-install scripts
INFO: Running postpatch on local node
INFO: Dom0 Needs to be rebooted, will be rebooting the Dom0

Broadcast message from root@oda_base01
 (unknown) at 17:40 ...

The system is going down for power off NOW!

Validate the steps with the  infrastructure post patch checks:

[root@oda_base01 ~]# /u01/app/12.1.0.2/grid/bin/crsctl check crs
CRS-4638: Oracle High Availability Services is online
CRS-4537: Cluster Ready Services is online
CRS-4529: Cluster Synchronization Services is online
CRS-4533: Event Manager is online

[root@oda_base01 ~]# /opt/oracle/oak/bin/oakcli validate -c ol6upgrade -postchecks
INFO: Validating the OL6 upgrade -postchecks

INFO: 2016-04-09 19:50:40: Current kernel is OL6
INFO: 2016-04-09 19:50:43: Checking for expected RPMs installed
SUCCESS: 2016-04-09 19:50:43: All the expected ol6 RPMs are installed

Apply the patch to the second node using the flag -local

[root@oda_base02 patch]# /opt/oracle/oak/bin/oakcli update -patch 12.1.2.6.0 --infra -local
INFO: Local patch is running on the Node <1>
INFO: ***************************************************
INFO: ** Please do not patch both nodes simultaneously **
INFO: ***************************************************
INFO: DB, ASM, Clusterware may be stopped during the patch if required
INFO: Local Node may get rebooted automatically during the patch if necessary
Do you want to continue: [Y/N]?: Y
INFO: User has confirmed for the reboot
INFO: 2016-04-09 19:58:07: Checking for minimum compatible version
SUCCESS: 2016-04-09 19:58:07: Minimum compatible version check passed

INFO: 2016-04-09 19:58:07: Checking available free space on /u01
INFO: 2016-04-09 19:58:07: Free space on /u01 is 45790328 1K-blocks
SUCCESS: 2016-04-09 19:58:07: Check for available free space passed

INFO: 2016-04-09 19:58:07: Checking for additional RPMs
SUCCESS: 2016-04-09 19:58:07: Check for additional RPMs passed

INFO: 2016-04-09 19:58:07: Checking for expected RPMs installed
INFO: 2016-04-09 19:58:08: Please take backup of ODA_BASE. Ensure ODA_BASE, Share Repos and all the VMs are shutdown cleanly before taking backup.
INFO: 2016-04-09 19:58:08: You may use eg tar -cvzf oakDom1.<node>.tar.gz /OVS/Repositories/odabaseRepo/VirtualMachines/oakDom1.
SUCCESS: 2016-04-09 19:58:08: All the expected ol5 RPMs are installed
INFO: All the VMs except the ODABASE will be shutdown forcefully if needed
Do you want to continue : [Y/N]? : Y
INFO: Running pre-install scripts
INFO: Running prepatching on local node
INFO: Completed pre-install scripts
INFO: local patching code START
INFO: Stopping local VMs, repos and oakd...
INFO: Shutdown of local VM, Repo and OAKD on node <1>.
INFO: Stopping OAKD on the local node.
INFO: Stopped Oakd on local node
INFO: Waiting for processes to sync up...
INFO: Oakd running on remote node
INFO: Stopping local VMs...
INFO: Stopping local shared repos...
INFO: Patching Dom0 components

INFO: Patching dom0 components on Local Node... <12.1.2.6.0>
INFO: 2016-04-09 20:04:26: Attempting to patch the HMP on Dom0...
SUCCESS: 2016-04-09 20:04:33: Successfully updated the device HMP to the version 2.3.4.0.1 on Dom0
INFO: 2016-04-09 20:04:33: Attempting to patch the IPMI on Dom0...
INFO: 2016-04-09 20:04:33: Successfully updated the IPMI on Dom0
INFO: 2016-04-09 20:04:33: Attempting to patch OS on Dom0...
INFO: 2016-04-09 20:04:43: Clusterware is running on local node
INFO: 2016-04-09 20:04:43: Attempting to stop clusterware and its resources locally
SUCCESS: 2016-04-09 20:08:20: Successfully stopped the clusterware on local node

SUCCESS: 2016-04-09 20:10:44: Successfully updated the device OVM to 3.2.9

INFO: Patching ODABASE components

INFO: Patching Infrastructure on the Local Node...

INFO: 2016-04-09 20:10:48: ------------------Patching OS-------------------------
INFO: 2016-04-09 20:10:48: OSPatching : Patching will start from step 0
INFO: 2016-04-09 20:10:48: OSPatching : Performing the step 0
INFO: 2016-04-09 20:10:51: OSPatching : step 0 completed
==================================================================================
INFO: 2016-04-09 20:10:51: OSPatching : Performing the step 1
INFO: 2016-04-09 20:10:51: OSPatching : step 1 completed
==================================================================================
INFO: 2016-04-09 20:10:51: OSPatching : Performing the step 2
INFO: 2016-04-09 20:10:53: OSPatching : step 2 completed.
==================================================================================
INFO: 2016-04-09 20:10:53: OSPatching : Performing the step 3
INFO: 2016-04-09 20:11:00: OSPatching : step 3 completed
==================================================================================
INFO: 2016-04-09 20:11:00: OSPatching : Performing the step 4
INFO: 2016-04-09 20:11:00: OSPatching : step 4 completed.
==================================================================================
INFO: 2016-04-09 20:11:00: OSPatching : Performing the step 5
INFO: 2016-04-09 20:11:00: OSPatching : step 5 completed
==================================================================================
INFO: 2016-04-09 20:11:00: OSPatching : Performing the step 6
INFO: 2016-04-09 20:11:00: OSPatching : Installing OL6 RPMs. Please wait...
INFO: 2016-04-09 20:14:25: OSPatching : step 6 completed
==================================================================================
INFO: 2016-04-09 20:14:25: OSPatching : Performing the step 7
INFO: 2016-04-09 20:16:58: OSPatching : step 7 completed
==================================================================================
INFO: 2016-04-09 20:16:58: OSPatching : Performing the step 8
INFO: 2016-04-09 20:16:59: OSPatching : step 8 completed
==================================================================================
INFO: 2016-04-09 20:16:59: OSPatching : Performing the step 9
INFO: 2016-04-09 20:17:35: OSPatching : step 9 completed
==================================================================================
INFO: 2016-04-09 20:17:35: OSPatching : Performing the step 10
INFO: 2016-04-09 20:18:11: OSPatching : step 10 completed
==================================================================================
INFO: 2016-04-09 20:18:11: OSPatching : Performing the step 11
INFO: 2016-04-09 20:18:11: OSPatching : step 11 completed
==================================================================================
INFO: 2016-04-09 20:18:11: OSPatching : Performing the step 12
INFO: 2016-04-09 20:18:12: Checking for expected RPMs installed
SUCCESS: 2016-04-09 20:18:12: All the expected ol6 RPMs are installed
INFO: 2016-04-09 20:18:12: OSPatching : step 12 completed
==================================================================================
SUCCESS: 2016-04-09 20:18:12: Successfully upgraded the OS

INFO: 2016-04-09 20:18:12: ----------------------Patching IPMI---------------------
INFO: 2016-04-09 20:18:13: IPMI is already upgraded or running with the latest version

INFO: 2016-04-09 20:18:13: ------------------Patching HMP-------------------------
INFO: 2016-04-09 20:18:15: HMP is already Up-to-date
INFO: 2016-04-09 20:18:15: /usr/lib64/sun-ssm already exists.

INFO: 2016-04-09 20:18:15: ----------------------Patching OAK---------------------
SUCCESS: 2016-04-09 20:18:53: Successfully upgraded OAK

INFO: 2016-04-09 20:18:56: ----------------------Patching JDK---------------------
SUCCESS: 2016-04-09 20:19:02: Successfully upgraded JDK

INFO: local patching code END

INFO: patching summary on local node
SUCCESS: 2016-04-09 20:19:06: Successfully upgraded the HMP on Dom0
SUCCESS: 2016-04-09 20:19:06: Successfully updated the device OVM
SUCCESS: 2016-04-09 20:19:06: Successfully upgraded the OS
INFO: 2016-04-09 20:19:06: IPMI is already upgraded
INFO: 2016-04-09 20:19:06: HMP is already updated
SUCCESS: 2016-04-09 20:19:06: Successfully updated the OAK
SUCCESS: 2016-04-09 20:19:06: Successfully updated the JDK

INFO: Running post-install scripts
INFO: Running postpatch on local node
INFO: Dom0 Needs to be rebooted, will be rebooting the Dom0

Broadcast message from root@oda_base02
 (unknown) at 20:20 ...

The system is going down for power off NOW!

From the first ODA_Base apply the fix to the InfiniBand connection:

[root@oda_base01 ~]# python /opt/oracle/oak/bin/infiniFixSetup.py
IB Fix requires nodes reboot. Do you want to continue? [Y/N] : Y
INFO: Checking version for IB Fix setup
INFO: Checking whether IB Fix setup is already done or not
INFO: Checking default HAVIP for IB Fix setup
INFO: Setting up IB fix
INFO: Enabling IB fix and rebooting all nodes....
[root@oda_base01 ~]#
Broadcast message from root@oda_base01
 (unknown) at 20:40 ...

The system is going down for power off NOW!

Check the correct application of the InfiniBand patch, the value of the file below should be 1

[root@oda_base01 ~]#  view /opt/oracle/oak/conf/ib_fix
1

Installation of the Grid Infrastructure patch, two available methods:

  • Full Downtime
  • Rolling Upgrade

The example below show the first method

[root@oda_base01 ~]# oakcli update -patch 12.1.2.6.0 --gi

Please enter the 'SYSASM' password : (During deployment we set the SYSASM password to 'welcome1'):
Please re-enter the 'SYSASM' password:
INFO: Running pre-install scripts
INFO: Running prepatching on node 0
INFO: Running prepatching on node 1
INFO: Completed pre-install scripts
...
...
INFO: Stopped Oakd
...
...

......
SUCCESS: All nodes in /opt/oracle/oak/temp_clunodes.txt are pingable and alive.
INFO: 2016-04-09 22:32:16: Setting up SSH for grid User
......
SUCCESS: All nodes in /opt/oracle/oak/temp_clunodes.txt are pingable and alive.
INFO: 2016-04-09 22:32:34: Patching the GI Home on the Node oda_base01 ...
INFO: 2016-04-09 22:32:34: Updating OPATCH...
INFO: 2016-04-09 22:32:36: Rolling back GI on oda_base01 (if necessary)...
INFO: 2016-04-09 22:32:39: Rolling back GI on oda_base02 (if necessary)...
INFO: 2016-04-09 22:32:46: Patching the GI Home on the Node oda_base01
INFO: 2016-04-09 22:34:02: Performing the conflict checks...
SUCCESS: 2016-04-09 22:34:16: Conflict checks passed for all the Homes
INFO: 2016-04-09 22:34:16: Checking if the patch is already applied on any of the Homes
INFO: 2016-04-09 22:34:28: Home is not Up-to-date
SUCCESS: 2016-04-09 22:37:01: Successfully stopped the Database consoles
SUCCESS: 2016-04-09 22:37:18: Successfully stopped the EM agents
INFO: 2016-04-09 22:37:23: Applying patch on /u01/app/12.1.0.2/grid Homes
INFO: 2016-04-09 22:37:23: It may take upto 15 mins. Please wait...
SUCCESS: 2016-04-09 22:50:57: Successfully applied the patch on the Home : /u01/app/12.1.0.2/grid
SUCCESS: 2016-04-09 22:51:24: Successfully started the Database consoles
SUCCESS: 2016-04-09 22:51:40: Successfully started the EM Agents
INFO: 2016-04-09 22:51:41: Patching the GI Home on the Node oda_base02
...
INFO: 2016-04-09 23:16:27: ASM is running in Flex mode


INFO: GI patching summary on node: oda_base01
SUCCESS: 2016-04-09 23:16:28: Successfully applied the patch on the Home /u01/app/12.1.0.2/grid

INFO: GI patching summary on node: oda_base02
SUCCESS: 2016-04-09 23:16:28: Successfully applied the patch on the Home /u01/app/12.1.0.2/grid

INFO: GI versions: installed <12.1.0.2.160119> expected <12.1.0.2.160119>
INFO: Running post-install scripts
INFO: Running postpatch on node 1...
INFO: Running postpatch on node 0...
...
...
INFO: Started Oakd

Installation of the RDBMS patch, two available methods:

  • Full Downtime
  • Rolling Upgrade

The example below show the first method

[root@oda_base01 ~]# oakcli update -patch 12.1.2.6.0 --database
INFO: Running pre-install scripts
INFO: Running prepatching on node 0
INFO: Running prepatching on node 1
INFO: Completed pre-install scripts
...
...

......
SUCCESS: All nodes in /opt/oracle/oak/temp_clunodes.txt are pingable and alive.
INFO: 2016-04-09 23:27:31: Getting all the possible Database Homes for patching
...
INFO: 2016-04-09 23:27:42: Patching 11.2.0.4 Database Homes on the Node oda_base01

Found the following 11.2.0.4 homes possible for patching:

HOME_NAME HOME_LOCATION
--------- -------------
OraDb11204_home1 /u01/app/oracle/product/11.2.0.4/dbhome_1

[Please note that few of the above Database Homes may be already up-to-date. They will be automatically ignored]

Would you like to patch all the above homes: Y | N ? : Y
INFO: 2016-04-09 23:29:17: Setting up SSH for the User oracle
......
SUCCESS: All nodes in /opt/oracle/oak/temp_clunodes.txt are pingable and alive.
INFO: 2016-04-09 23:29:35: Updating OPATCH
Fixing home : /u01/app/oracle/product/11.2.0.4/dbhome_1...done
INFO: 2016-04-09 23:30:33: Performing the conflict checks...
SUCCESS: 2016-04-09 23:30:43: Conflict checks passed for all the Homes
INFO: 2016-04-09 23:30:43: Checking if the patch is already applied on any of the Homes
INFO: 2016-04-09 23:30:47: Home is not Up-to-date
SUCCESS: 2016-04-09 23:31:13: Successfully stopped the Database consoles
SUCCESS: 2016-04-09 23:31:31: Successfully stopped the EM agents
INFO: 2016-04-09 23:31:36: Applying the patch on oracle home : /u01/app/oracle/product/11.2.0.4/dbhome_1 ...
SUCCESS: 2016-04-09 23:32:52: Successfully applied the patch on the Home : /u01/app/oracle/product/11.2.0.4/dbhome_1
SUCCESS: 2016-04-09 23:32:52: Successfully started the Database consoles
SUCCESS: 2016-04-09 23:33:08: Successfully started the EM Agents
INFO: 2016-04-09 23:33:17: Patching 11.2.0.4 Database Homes on the Node oda_base02
INFO: 2016-04-09 23:40:45: Running the catbundle.sql
INFO: 2016-04-09 23:40:52: Running catbundle.sql on the Database XXXXXXX
INFO: 2016-04-09 23:41:29: Running catbundle.sql on the Database YYYYYYY
INFO: 2016-04-09 23:42:07: Running catbundle.sql on the Database ZZZZZZZ
INFO: 2016-04-09 23:42:42: Running catbundle.sql on the Database WWWWWWW
...
INFO: 2016-04-09 23:47:56: Patching 12.1.0.2 Database Homes on the Node oda_base01

Found the following 12.1.0.2 homes possible for patching:

HOME_NAME HOME_LOCATION
--------- -------------
OraDb12102_home1 /u01/app/oracle/product/12.1.0.2/dbhome_1
OraDb12102_home2 /u01/app/oracle/product/12.1.0.2/dbhome_2

[Please note that few of the above Database Homes may be already up-to-date. They will be automatically ignored]

Would you like to patch all the above homes: Y | N ? : Y
INFO: 2016-04-09 23:49:11: Updating OPATCH
INFO: 2016-04-09 23:49:55: Performing the conflict checks...
SUCCESS: 2016-04-09 23:50:21: Conflict checks passed for all the Homes
INFO: 2016-04-09 23:50:21: Checking if the patch is already applied on any of the Homes
INFO: 2016-04-09 23:50:28: Home is not Up-to-date
SUCCESS: 2016-04-09 23:50:47: Successfully stopped the Database consoles
SUCCESS: 2016-04-09 23:51:04: Successfully stopped the EM agents
INFO: 2016-04-09 23:51:10: Applying patch on /u01/app/oracle/product/12.1.0.2/dbhome_1,/u01/app/oracle/product/12.1.0.2/dbhome_2 Homes
INFO: 2016-04-09 23:51:10: It may take upto 30 mins. Please wait...
SUCCESS: 2016-04-09 23:54:20: Successfully applied the patch on the Home : /u01/app/oracle/product/12.1.0.2/dbhome_1,/u01/app/oracle/product/12.1.0.2/dbhome_2
SUCCESS: 2016-04-09 23:54:20: Successfully started the Database consoles
SUCCESS: 2016-04-09 23:54:37: Successfully started the EM Agents
INFO: 2016-04-09 23:54:47: Patching 12.1.0.2 Database Homes on the Node oda_base02


INFO: DB patching summary on node: oda_base01
SUCCESS: 2016-04-01 00:03:19: Successfully applied the patch on the Home /u01/app/oracle/product/11.2.0.4/dbhome_1
SUCCESS: 2016-04-01 00:03:19: Successfully applied the patch on the Home /u01/app/oracle/product/12.1.0.2/dbhome_1,/u01/app/oracle/product/12.1.0.2/dbhome_2

INFO: DB patching summary on node: oda_base02
SUCCESS: 2016-04-01 00:03:20: Successfully applied the patch on the Home /u01/app/oracle/product/11.2.0.4/dbhome_1
SUCCESS: 2016-04-01 00:03:20: Successfully applied the patch on the Home /u01/app/oracle/product/12.1.0.2/dbhome_1,/u01/app/oracle/product/12.1.0.2/dbhome_2

Post patching validation:

[root@oda_base01 ~]# /opt/oracle/oak/bin/oakcli validate -d
INFO: oak system information and Validations
RESULT: System Software inventory details
 Reading the metadata. It takes a while...
 System Version Component Name Installed Version Supported Version
 -------------- --------------- ------------------ -----------------
 12.1.2.6.0
                  Controller_INT   4.230.40-3739     Up-to-date
                  Controller_EXT   06.00.02.00       Up-to-date
                  Expander         0018              Up-to-date
 SSD_SHARED {
 [ c1d20,c1d21,c1d22,              A29A               Up-to-date
 c1d23 ]
 [ c1d16,c1d17,c1d18,              A29A               Up-to-date
 c1d19 ]
 }
 HDD_LOCAL                         A720               Up-to-date
 HDD_SHARED                        P554               Up-to-date
 ILOM                              3.2.4.42 r99377    Up-to-date
 BIOS                              30040200           Up-to-date
 IPMI                              1.8.12.4           Up-to-date
 HMP                               2.3.4.0.1          Up-to-date
 OAK                               12.1.2.6.0         Up-to-date
 OL                                6.7                Up-to-date
 OVM                               3.2.9              Up-to-date
 GI_HOME                         12.1.0.2.160119(2194 Up-to-date
                                 8354,21948344)
 DB_HOME {
 [ OraDb11204_home1 ]            11.2.0.4.160119(2194 Up-to-date
                                 8347,21948348)
 [ OraDb12102_home2,O            12.1.0.2.160119(2194 Up-to-date
 raDb12102_home1 ]               8354,21948344)
 }
RESULT: System Information:-
 Manufacturer:Oracle Corporation
 Product Name:ORACLE SERVER X5-2
 Serial Number:1548NM102F
RESULT: BIOS Information:-
 Vendor:American Megatrends Inc.
 Version:30040200
 Release Date:04/29/2015
 BIOS Revision:4.2
 Firmware Revision:3.2
SUCCESS: Controller p1 has the IR Bypass mode set correctly
SUCCESS: Controller p2 has the IR Bypass mode set correctly
INFO: Reading ilom data, may take short while..
INFO: Read the ilom data. Doing Validations
RESULT: System ILOM Version: 3.2.4.42 r99377
RESULT: System BMC firmware version 3.02
RESULT: Powersupply PS0 V_IN=230 Volts IN_POWER=180 Watts OUT_POWER=170 Watts
RESULT: Powersupply PS1 V_IN=230 Volts IN_POWER=190 Watts OUT_POWER=160 Watts
SUCCESS: Both the powersupply are ok and functioning
RESULT: Cooling Unit FM0 fan speed F0=5000 RPM F1=4500 RPM
RESULT: Cooling Unit FM1 fan speed F0=9100 RPM F1=8000 RPM
SUCCESS: Both the cooling unit are present
RESULT: Processor P0 present Details:-
 Version:Intel(R) Xeon(R) CPU E5-2699 v3 @ 2.30GHz
 Current Speed:2300 MHz Core Enabled:18 Thread Count:36
SUCCESS: All 4 memory modules of CPU P0 ok, each module is of Size:32767 MB Type:Other Speed:2133 MHz manufacturer:Samsung
RESULT: Processor P1 present Details:-
 Version:Intel(R) Xeon(R) CPU E5-2699 v3 @ 2.30GHz
 Current Speed:2300 MHz Core Enabled:18 Thread Count:36
SUCCESS: All 4 memory modules of CPU P1 ok, each module is of Size:32767 MB Type:Other Speed:2133 MHz manufacturer:Samsung
RESULT: Total Physical System Memory is 132037124 kB
SUCCESS: All OS Disks are present and in ok state
RESULT: Power Supply=24 degrees C
INFO: Checking Operating System Storage
SUCCESS: The OS disks have the boot stamp
RESULT: Device /dev/xvda2 is mounted on / of type ext3 in (rw)
RESULT: Device /dev/xvda1 is mounted on /boot of type ext3 in (rw)
RESULT: Device /dev/xvdb1 is mounted on /u01 of type ext3 in (rw)
RESULT: / has 19218 MB free out of total 55852 MB
RESULT: /boot has 384 MB free out of total 460 MB
RESULT: /u01 has 34501 MB free out of total 93868 MB
INFO: Checking Shared Storage
RESULT: Disk HDD_E0_S00_993971920 path1 status active device sdy with status active path2 status active device sda with status active
SUCCESS: HDD_E0_S00_993971920 has both the paths up and active
RESULT: Disk HDD_E0_S01_993379760 path1 status active device sdz with status active path2 status active device sdb with status active
SUCCESS: HDD_E0_S01_993379760 has both the paths up and active
RESULT: Disk HDD_E0_S02_993993052 path1 status active device sdaa with status active path2 status active device sdc with status active
SUCCESS: HDD_E0_S02_993993052 has both the paths up and active
RESULT: Disk HDD_E0_S03_993310956 path1 status active device sdab with status active path2 status active device sdd with status active
SUCCESS: HDD_E0_S03_993310956 has both the paths up and active
RESULT: Disk HDD_E0_S04_993385276 path1 status active device sdac with status active path2 status active device sde with status active
SUCCESS: HDD_E0_S04_993385276 has both the paths up and active
RESULT: Disk HDD_E0_S05_993388928 path1 status active device sdf with status active path2 status active device sdad with status active
SUCCESS: HDD_E0_S05_993388928 has both the paths up and active
RESULT: Disk HDD_E0_S06_993310572 path1 status active device sdae with status active path2 status active device sdg with status active
SUCCESS: HDD_E0_S06_993310572 has both the paths up and active
RESULT: Disk HDD_E0_S07_991849548 path1 status active device sdh with status active path2 status active device sdaf with status active
SUCCESS: HDD_E0_S07_991849548 has both the paths up and active
RESULT: Disk HDD_E0_S08_992415004 path1 status active device sdag with status active path2 status active device sdi with status active
SUCCESS: HDD_E0_S08_992415004 has both the paths up and active
RESULT: Disk HDD_E0_S09_992392444 path1 status active device sdj with status active path2 status active device sdah with status active
SUCCESS: HDD_E0_S09_992392444 has both the paths up and active
RESULT: Disk HDD_E0_S10_992233592 path1 status active device sdai with status active path2 status active device sdk with status active
SUCCESS: HDD_E0_S10_992233592 has both the paths up and active
RESULT: Disk HDD_E0_S11_992337644 path1 status active device sdl with status active path2 status active device sdaj with status active
SUCCESS: HDD_E0_S11_992337644 has both the paths up and active
RESULT: Disk HDD_E0_S12_993363524 path1 status active device sdm with status active path2 status active device sdak with status active
SUCCESS: HDD_E0_S12_993363524 has both the paths up and active
RESULT: Disk HDD_E0_S13_992394252 path1 status active device sdn with status active path2 status active device sdal with status active
SUCCESS: HDD_E0_S13_992394252 has both the paths up and active
RESULT: Disk HDD_E0_S14_993366344 path1 status active device sdam with status active path2 status active device sdo with status active
SUCCESS: HDD_E0_S14_993366344 has both the paths up and active
RESULT: Disk HDD_E0_S15_993407552 path1 status active device sdp with status active path2 status active device sdan with status active
SUCCESS: HDD_E0_S15_993407552 has both the paths up and active
RESULT: Disk SSD_E0_S16_1313537708 path1 status active device sdq with status active path2 status active device sdao with status active
SUCCESS: SSD_E0_S16_1313537708 has both the paths up and active
RESULT: Disk SSD_E0_S17_1313522352 path1 status active device sdr with status active path2 status active device sdap with status active
SUCCESS: SSD_E0_S17_1313522352 has both the paths up and active
RESULT: Disk SSD_E0_S18_1313531936 path1 status active device sds with status active path2 status active device sdaq with status active
SUCCESS: SSD_E0_S18_1313531936 has both the paths up and active
RESULT: Disk SSD_E0_S19_1313534520 path1 status active device sdt with status active path2 status active device sdar with status active
SUCCESS: SSD_E0_S19_1313534520 has both the paths up and active
RESULT: Disk SSD_E0_S20_1313568492 path1 status active device sdu with status active path2 status active device sdas with status active
SUCCESS: SSD_E0_S20_1313568492 has both the paths up and active
RESULT: Disk SSD_E0_S21_1313571440 path1 status active device sdv with status active path2 status active device sdat with status active
SUCCESS: SSD_E0_S21_1313571440 has both the paths up and active
RESULT: Disk SSD_E0_S22_1313568380 path1 status active device sdw with status active path2 status active device sdau with status active
SUCCESS: SSD_E0_S22_1313568380 has both the paths up and active
RESULT: Disk SSD_E0_S23_1313568480 path1 status active device sdx with status active path2 status active device sdav with status active
SUCCESS: SSD_E0_S23_1313568480 has both the paths up and active
INFO: Doing oak network checks
RESULT: Detected active link for interface eth0 with link speed 10000Mb/s and cable type as TwistedPair
RESULT: Detected active link for interface eth1 with link speed 10000Mb/s and cable type as TwistedPair
WARNING: No Link detected for interface eth2 with cable type as TwistedPair
WARNING: No Link detected for interface eth3 with cable type as TwistedPair
INFO: Checking bonding interface status
RESULT: No Bond Interface Found
SUCCESS: ibbond0 is running 192.168.16.27
 It may take a while. Please wait...
 INFO : ODA Topology Verification
 INFO : Running on Node0
 INFO : Check hardware type
 SUCCESS : Type of hardware found : X5-2
 INFO : Check for Environment(Bare Metal or Virtual Machine)
 SUCCESS : Type of environment found : Virtual Machine(ODA BASE)
 SUCCESS : Number of External SCSI controllers found : 2
 INFO : Check for Controllers correct PCIe slot address
 SUCCESS : External LSI SAS controller 0 : 00:04.0
 SUCCESS : External LSI SAS controller 1 : 00:05.0
 INFO : Check if JBOD powered on
 SUCCESS : 1JBOD : Powered-on
 INFO : Check for correct number of EBODS(2 or 4)
 SUCCESS : EBOD found : 2
 INFO : Check for External Controller 0
 SUCCESS : Controller connected to correct EBOD number
 SUCCESS : Controller port connected to correct EBOD port
 SUCCESS : Overall Cable check for controller 0
 INFO : Check for External Controller 1
 SUCCESS : Controller connected to correct EBOD number
 SUCCESS : Controller port connected to correct EBOD port
 SUCCESS : Overall Cable check for Controller 1
 INFO : Check for overall status of cable validation on Node0
 SUCCESS : Overall Cable Validation on Node0
 INFO : Check Node Identification status
 SUCCESS : Node Identification
 SUCCESS : Node name based on cable configuration found : NODE0
 INFO : Check JBOD Nickname
 SUCCESS : JBOD Nickname set correctly : Oracle Database Appliance - E0
 INFO : The details for Storage Topology Validation can also be found in the log file=/opt/oracle/oak/log/oda_base01/storagetopology/StorageTopology-2016-04-01-00:06:34_28446_1789.log

 One takeaway

Despite the fact that patching an Oracle Engineered system should be a straight forward task, it is recommended to carefully read the instructions (README), and the MOS notes continuously updated with bug, known issues and other related information.




Oracle Cloud Computing

What is a database Cloud Computing?

This looks like the million dollar question; what we know for sure is that it is a quite recent technology and different people identify the Cloud Architecture by different key features (On-Demand, Broad Network Access, Resource Pooling, Rapid Elasticity, Measured Service). There are two main categories: Private and Public Cloud, which identifies respectively in house and outsourced Cloud installation. Focusing on Oracle Database technology the Private Cloud is a clustered infrastructure hosted on the company?s data center, therefore the IT department is responsible of the installation, maintenance and life cycle of all hardware and software components. In case of Public Cloud the company demands the management of the databases to a third party, which owns the infrastructure used to manage the databases of different customers.

Beyond the different marketing definitions of database cloud computing, Oracle provides a reach set of features to realize this kind of setup. The main component of this architecture is the Grid Infrastructure, which provides the cluster and storage foundation of Oracle Cloud Computing. On top of the Grid Infrastructure we have the RDBMS which enables RAC, RAC One Node and stand-alone database setups.

At this point, anyone can say that with the exception of the name, there is almost nothing new compared to the earlier version of Oracle Real Application Cluster (RAC). But Oracle Cloud Computing is much more than a simple multi-node RAC which hosts several databases; the introduction of features like Quality of Service Management (QoS), Server Pool, Instance Caging (extension of Resource Manager) and the enhancement of the existing ones, allow to consolidate all the environments guaranteeing to each application: the performance expected, the scalability for future needs, the availability to respect the Service Level Agreement (SLA), the best time to market, the governance of the entire platform and last but not least cost saving.

Obviously Oracle provides all the instruments to reach such great result, but it is up to the single organization to define and implement the most appropriate modus operandi in terms of OM, Life Cycle, Capacity planning and management, to obtain the result promised by this great technology.
